Spatial continuity

1. 1. Samples and support
2. 2. Describing data
3. 3. Spatial continuity
4. 4. Kriging
5. 5. Simulation
6. 6. Checking a model

Two samples taken a meter apart tend to carry similar grades; two samples a kilometer apart may have nothing in common. The variogram measures how fast that resemblance fades with distance and direction, and the estimates and simulations of later chapters depend on it.

What you'll learn

• How pairs of samples at a lag h show spatial continuity, first in an h-scatterplot, then in the variogram.
• How to compute an experimental variogram, and what the lag and direction tolerances decide.
• What nugget, sill and range mean, and how the spherical, exponential and Gaussian models differ.
• How to find anisotropy with directional variograms and a variogram map, and describe it with an ellipse.
• Why a fitted model must be a valid, positive definite function.

Prerequisites: Samples and support and Describing data: samples, histograms, mean and variance.

import sys
from pathlib import Path

HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1] / "examples"))

Near things are more alike

Geographers state the idea as a law: near things are more related than distant things. Figure 1 shows it on one east-west line of the Walker Lake exhaustive data. Two points 5 m apart differ by 35 ppm; the same point and one 60 m away differ by 401 ppm.

Figure 1. V along northing 150 m of the exhaustive Walker Lake data. The pair 5 m apart differs by 35 ppm, the pair 60 m apart by 401 ppm.

One pair proves nothing, so you look at all of them. This chapter uses the 470 Walker Lake samples of V, in ppm, over a 260 × 300 m area; the last line of the cell reads the three values of Figure 1 from the exhaustive data.

import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, HIGHLIGHT, INK, save

samples = bt.datasets.walker_lake()
xy, v = samples.coords, samples["V"]
print(f"{len(v)} samples, mean {v.mean():.0f} ppm, variance {v.var():.0f} ppm²")

line = bt.datasets.walker_lake_exhaustive()["V"].reshape(300, 260)[149]
print(f"northing 150 m: V = {line[89]:.0f} at 90 m, {line[94]:.0f} at 95 m, {line[149]:.0f} at 150 m")

Out:

470 samples, mean 435 ppm, variance 89738 ppm²
northing 150 m: V = 414 at 90 m, 379 at 95 m, 13 at 150 m

Pairs at a lag

Pick a separation vector h, called the lag: a distance and a direction. Every pair of samples separated by about h gives one tail value and one head value (Figure 2). Plot the heads against the tails and you get an h-scatterplot.

Figure 2. Pairs of samples separated by about the same vector h. Each segment contributes one point to the h-scatterplot and one squared difference to the variogram at lag h.

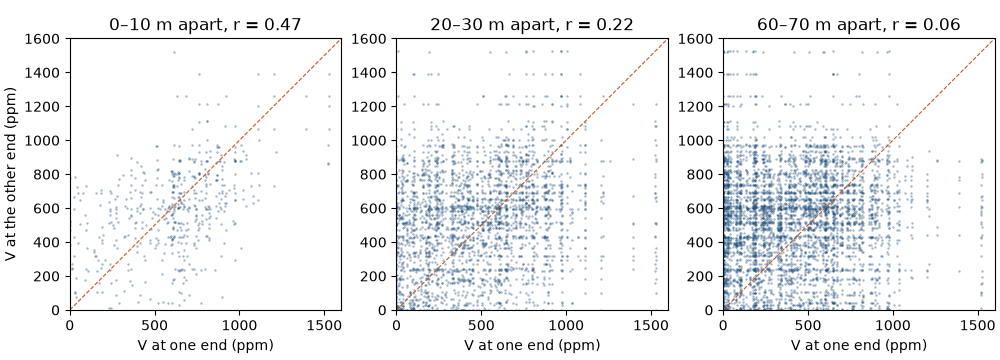

The cell below builds all 110 215 pairs of samples and draws the h-scatterplot for three distance classes, ignoring direction for now.

i, j = np.triu_indices(len(v), 1)
distance = np.hypot(*(xy[i, :2] - xy[j, :2]).T)
print(f"{len(distance)} pairs")
fig, axes = plt.subplots(1, 3, figsize=(10, 3.6), layout="constrained")
for ax, low in zip(axes, (0, 20, 60)):
    pair = (distance >= low) & (distance < low + 10)
    head, tail = v[i[pair]], v[j[pair]]
    r = np.corrcoef(head, tail)[0, 1]
    gamma = 0.5 * np.mean((head - tail) ** 2)
    print(
        f"lag {low}-{low + 10} m: {pair.sum():5d} pairs, correlation {r:.2f}, half mean squared difference {gamma:.0f}"
    )
    ax.scatter(head, tail, s=3, color=ACCENT, alpha=0.4, linewidths=0)
    ax.plot([0, 1600], [0, 1600], color=HIGHLIGHT, lw=0.8, ls="--")
    ax.set(
        xlim=(0, 1600),
        ylim=(0, 1600),
        xlabel="V at one end (ppm)",
        title=f"{low}–{low + 10} m apart, r = {r:.2f}",
    )
    ax.set_aspect("equal")
axes[0].set_ylabel("V at the other end (ppm)")
save(fig, "h_scatter")

Out:

110215 pairs
lag 0-10 m:   526 pairs, correlation 0.47, half mean squared difference 40404
lag 20-30 m:  2963 pairs, correlation 0.22, half mean squared difference 78353
lag 60-70 m:  4934 pairs, correlation 0.06, half mean squared difference 92469

Pairs closer than 10 m cluster around the 1:1 line, with a correlation of 0.47. At 20 to 30 m the cloud widens and the correlation drops to 0.22; at 60 to 70 m it is 0.06, and the two ends of a pair are close to unrelated.

The last number on each line, half the mean squared difference between head and tail, grows as the cloud widens: 40 404, then 78 353, then 92 469 ppm². That number, computed for every lag, is the variogram.

The experimental variogram

The experimental variogram γ(h) is half the mean squared difference of all pairs in a lag class. It is small where near samples look alike and levels off where they stop resembling each other.

The math

For the \(N(h)\) pairs \((x_\alpha, x_\alpha + h)\) in a lag class,

\[ \gamma^*(h) = \frac{1}{2N(h)} \sum_{\alpha=1}^{N(h)} \bigl[z(x_\alpha + h) - z(x_\alpha)\bigr]^2 . \]

The factor ½ makes γ(h) equal to the variance of the data at lags where the values are uncorrelated.

Scattered samples do not sit at exact multiples of h, so each lag collects pairs within tolerances (Figure 3). The lag tolerance is half the lag spacing: with lag=10, the first class holds pairs from 0 to 10 m, the second from 10 to 20 m. For a given azimuth, the angular tolerance (tolerance, 22.5° by default) opens a cone around the direction, and the optional bandwidth caps its width far from the tail.

Figure 3. A directional search from one tail sample: a cone of ±22.5° around the azimuth, capped by a bandwidth and cut into lag classes. Only heads in the shaded class count toward that lag.

experimental_variogram is a function: it takes coordinates, values and the lag settings, and returns an ExperimentalVariogram value holding lags, gammas and pair counts. The cell checks the first lag against the formula above, computed by hand.

lag_size = 10.0  # @param {type:"slider", min:2, max:30, step:1}
omni = bt.experimental_variogram(samples, "V", lag_size, 120.0)
print(" lag  pairs  gamma")
for lag, count, gamma in zip(omni.lags, omni.counts, omni.gammas):
    print(f"{lag:4.0f} {count:6.0f} {gamma:6.0f}")
first = distance < lag_size
by_hand = 0.5 * np.mean((v[i[first]] - v[j[first]]) ** 2)
assert np.isclose(by_hand, omni.gammas[0]) and first.sum() == omni.counts[0]

Out:

 lag  pairs  gamma
   5    526  40404
  15   2072  68328
  25   2963  78353
  35   3201  94763
  45   4035  88300
  55   4273  95161
  65   4934  92469
  75   5200  94625
  85   5544  88662
  95   5126  99558
 105   5576  92228
 115   5544  94707

The first class holds 526 pairs and the later ones thousands. γ climbs from 40 404 at 5 m to about 94 000 by 35 m, then wanders around the sample variance of 89 738. Short lags carry the fewest pairs and matter most for kriging, so read their values with care.

Pitfall: lags without enough pairs

A lag class with a few dozen pairs gives a noisy γ that can swing a fitted nugget or range. Check counts before trusting a point, and choose lag near the typical sample spacing so the first class fills up.

Nugget, sill and range

Three numbers summarize a variogram. The nugget is the jump at the origin: differences between samples so close together that the data cannot resolve them, plus measurement error. The sill is the plateau. The range is the lag where γ reaches the sill; samples farther apart than the range are uncorrelated.

Kriging and simulation need γ at every distance, not only at the lag centers, so you fit a model: a function from a short list of shapes known to be valid (Figure 4). The spherical model rises in a near-straight line and reaches the sill exactly at the range. The exponential model rises faster at the start and approaches the sill without reaching it; its practical range is where it reaches 95 % of the sill. The Gaussian model starts flat and suits smooth variables such as topography or thickness.

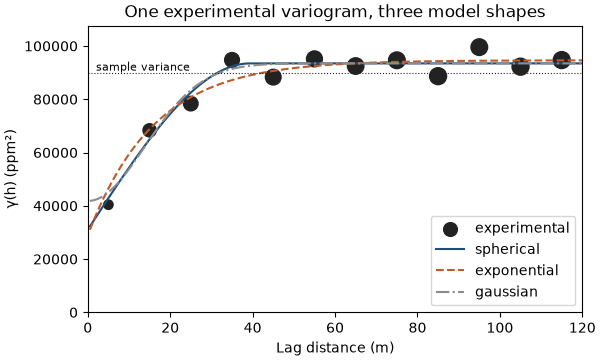

Figure 4. Spherical, exponential and Gaussian models with the same sill and range. The exponential and Gaussian curves reach 95 % of the sill at the range; the spherical curve reaches the sill there.

fits = {name: omni.fit(name, weighting="count/gamma") for name in ("spherical", "exponential", "gaussian")}
for name, fit in fits.items():
    print(
        f"{name:>11}: nugget {fit.nugget:6.0f}, sill {fit.sill:6.0f}, range {fit.structures[0].range:4.0f} m"
    )

h = np.linspace(0, 120, 241)
fig, ax = plt.subplots(figsize=(6, 3.6), layout="constrained")
bt.plot.variogram(omni, ax=ax, color=INK, label="experimental")
for (name, fit), color, style in zip(fits.items(), (ACCENT, HIGHLIGHT, GRAY), ("-", "--", "-.")):
    ax.plot(h[1:], fit.gamma(h[1:]), style, color=color, label=name)
ax.axhline(v.var(), color=INK, lw=0.8, ls=":")
ax.text(2, v.var(), "sample variance", va="bottom", fontsize=8)
ax.set(xlim=(0, 120), ylim=(0, 1.2 * v.var()), xlabel="Lag distance (m)", ylabel="γ(h) (ppm²)")
ax.set_title("One experimental variogram, three model shapes")
ax.legend(loc="lower right")
save(fig, "shapes")

Out:

  spherical: nugget  31036, sill  93458, range   39 m
exponential: nugget  28925, sill  94638, range   48 m
   gaussian: nugget  41808, sill  93468, range   34 m

All three shapes pass close to the points beyond 10 m. They disagree at the origin, where the data are thinnest: the spherical fit puts 31 036 ppm² in the nugget, the exponential 28 925 and the Gaussian 41 808, a third to nearly half of the sill. Those short-scale choices change kriging weights far more than the tail of the curve.

fit returns a Variogram, a value object: a nugget, a list of Structures (shape, sill, range) and an anisotropy. It holds no data and no state, so you can print it, compare it, or pass it to any estimator.

Anisotropy

Walker Lake V follows elongated, north-northwest trending bodies. Along them grades stay similar over long distances; across them they change fast. A variogram that depends on direction is anisotropic.

The variogram map computes γ for every direction and lag at once and shows the pattern as an image. For each of 36 directions variogram_map also fits a range, so the direction of the longest range, the major axis, is one argmax away.

vmap = bt.variogram_map(samples, "V", 10.0, 120.0)
angle = vmap.angles[np.nanargmax(vmap.ranges)]
azimuth = (90 - np.degrees(angle)) % 180
print(
    f"longest range N{azimuth:.0f}°: {np.nanmax(vmap.ranges):.0f} m; shortest {np.nanmin(vmap.ranges):.0f} m"
)

Out:

longest range N170°: 80 m; shortest 24 m

The map puts the major axis at N170° with an 80 m range, against 24 m in the shortest direction. Angles follow one convention throughout boitatá (Figure 5): azimuth clockwise from north, dip positive downward, z up. The ranges along the three axes form the anisotropy ellipse (an ellipsoid in 3D); a Variogram stores the rotation of its axes and the ratios of the shorter ranges to the major one.

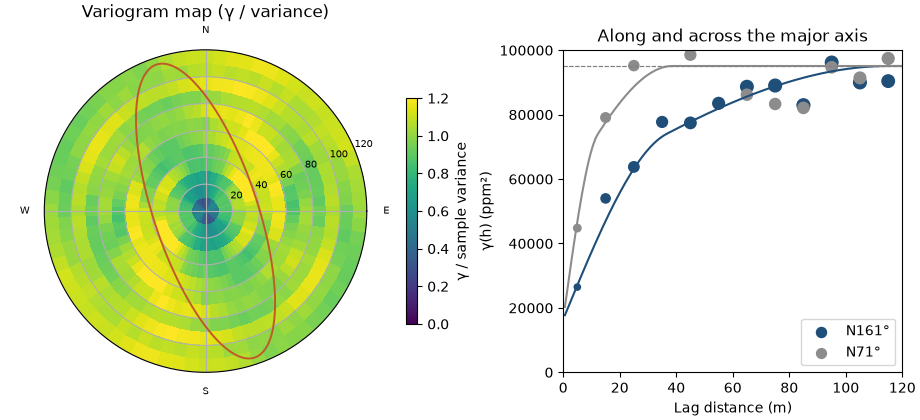

Figure 5. Left, the anisotropy ellipse of the model fitted below, drawn to scale: major range 115 m at azimuth 161°, minor range 39 m. Right, a dip of 30° in a vertical section.

Variogram.fit_directional fits one anisotropic model to experimental variograms in several directions at once: the direction, the range ratio, and every sill and range.

azimuths = np.arange(0, 180, 22.5)
directional = [bt.experimental_variogram(samples, "V", 10.0, 120.0, azimuth=a) for a in azimuths]
model = bt.Variogram.fit_directional(
    directional, [(a, 0) for a in azimuths], ["spherical", "spherical"], weighting="count/gamma"
)
print(model)
major = model.structures[-1].range
minor = major * model.ratios[0]
print(f"major axis N{model.rotation[0]:.0f}°, long range {major:.0f} m along it and {minor:.0f} m across it")

Out:

Variogram(nugget=16458.263904055566, structures=[Structure("spherical", sill=39532.539054973735, range=36.61762520915539), Structure("spherical", sill=39110.929672733, range=115)], rotation=(161.46015029654865, 0.0, 0.0), ratios=(0.33583545063941, 1.0))
major axis N161°, long range 115 m along it and 39 m across it

The joint fit turns the axis to N161°, nine degrees from the map's pick, and gives the long structure a range of 115 m along it and 39 m across it: a ratio of one third. The nugget falls to 16 458 ppm², because the short 37 m structure describes the fast early rise. The next figure overlays the ellipse on the variogram map and compares the model with the experimental points along both axes.

variance = v.var()
fig = plt.figure(figsize=(9.2, 4.2), layout="constrained")
a = fig.add_subplot(1, 2, 1, projection="polar")
gamma = np.where(vmap.counts >= 30, vmap.gammas, np.nan)
step = vmap.angles[1] - vmap.angles[0]
theta = np.r_[vmap.angles, vmap.angles + np.pi, 2 * np.pi] - step / 2
radius = np.r_[vmap.lags - 5, vmap.lags[-1] + 5]
mesh = a.pcolormesh(theta, radius, np.vstack([gamma, gamma]).T / variance, vmin=0, vmax=1.2, shading="flat")
t = np.linspace(0, 2 * np.pi, 361)
direction = np.radians(90 - model.rotation[0])
ellipse = major * minor / np.hypot(minor * np.cos(t - direction), major * np.sin(t - direction))
a.plot(t, ellipse, color=HIGHLIGHT, lw=1.4)
a.set_rlim(0, radius[-1])
a.set_xticks(np.radians([0, 90, 180, 270]), ["E", "N", "W", "S"])
a.tick_params(labelsize=7)
a.set_title("Variogram map (γ / variance)")
fig.colorbar(mesh, ax=a, shrink=0.7, label="γ / sample variance")
b = fig.add_subplot(1, 2, 2)
for az, color in ((model.rotation[0], ACCENT), (model.rotation[0] + 90, GRAY)):
    exp = bt.experimental_variogram(samples, "V", 10.0, 120.0, azimuth=az)
    bt.plot.variogram(exp, variogram=model, direction=(az, 0), ax=b, color=color, label=f"N{az % 180:.0f}°")
b.set(xlim=(0, 120), xlabel="Lag distance (m)", ylabel="γ(h) (ppm²)")
b.set_title("Along and across the major axis")
b.legend(loc="lower right")
save(fig, "anisotropy")

Across the axis (N71°) γ reaches the sill within about 25 m; along it (N161°) it climbs until about 100 m. The omnidirectional variogram of the previous section averaged these two curves and hid the difference.

Key idea

The variogram describes continuity as a function of both distance and direction. Look in several directions before you fit, and fit one model whose ellipse explains all of them.

The long range stops at 115 m, a little below the largest lag of 120 m; beyond the data, the fit has nothing to hold it. Reading such limits is part of the job: experimental variograms and variogram fitting walk through them.

A Variogram serializes to JSON and back without loss, so a model fitted today can travel with a report or feed a run next month.

text = model.to_json()
print(text)
assert bt.Variogram.from_json(text).gamma([10.0, 50.0]).tolist() == model.gamma([10.0, 50.0]).tolist()

Out:

{"type":"Variogram","format":1,"nugget":16458.263904055566,"structures":[{"model":"Spherical","sill":39532.539054973735,"range":36.61762520915539},{"model":"Spherical","sill":39110.929672733,"range":115.0}],"anisotropy":{"azimuth":161.46015029654865,"dip":0.0,"rake":0.0,"major":1.0,"semi":0.33583545063941,"minor":1.0}}

Why the model must be valid

You cannot join the experimental points with straight lines and skip the fitting. Kriging combines samples with weights, and the variance of any weighted combination must come out positive. The covariance matrix built from the model has to be positive definite for every sample layout, and only some functions guarantee that.

A straight line from zero to the sill looks harmless. It is valid along a line and invalid in 2D. The cell builds the covariance of a 15 × 15 grid of points from that line, and from a spherical model with the same range, and prints the smallest eigenvalue of each matrix. A negative eigenvalue means some combination of the points has a negative variance.

grid = np.stack(np.meshgrid(np.arange(15.0), np.arange(15.0)), axis=-1).reshape(-1, 2)
lags = np.hypot(*(grid[:, None] - grid[None]).transpose(2, 0, 1))
straight = np.clip(1 - lags / 5, 0, None)
spherical = bt.Variogram([("spherical", 1.0, 5.0)]).covariance(lags.ravel()).reshape(lags.shape)
for name, covariance in (("straight line to the sill", straight), ("spherical", spherical)):
    print(f"{name:>25}: smallest eigenvalue {np.linalg.eigvalsh(covariance).min():+.3f}")

Out:

straight line to the sill: smallest eigenvalue -0.303
                spherical: smallest eigenvalue +0.119

The straight line gives −0.303: a weighted sum of these points would have a variance of −0.303 times the sill, which cannot exist. The spherical model gives +0.119. Every model boitatá builds comes from valid shapes, and nested sums of valid structures stay valid, so any Variogram you create or fit is safe to krige with.

Pitfall: a model that fits the points but not the physics

A curve through every experimental point is a worse model than a smooth valid one that misses a few. Invalid models give negative kriging variances and unstable weights, and the damage shows only downstream.

Check before you move on

• Why is the experimental variogram divided by two, and what does it approach at large lags?
• What would a variogram that is flat from the first lag onward say about the data?
• In which direction is Walker Lake V most continuous, and what is the range ratio?
• Why can't you use any curve that fits the experimental points as a variogram model?

See also

• Examples: experimental variograms, variogram fitting, nugget inference.
• API: experimental_variogram, ExperimentalVariogram, variogram_map, Variogram, Structure.

Next: Kriging turns the variogram into weights for estimating unsampled locations.
