training images and their consistency¶
a training image is a geological hypothesis drawn as a grid. bt.object_training_image draws one from channels and
ellipsoids, and bt.training_image_consistency tests whether the hard data could come from holes drilled through it.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import HIGHLIGHT, INK, save
from matplotlib.colors import ListedColormap
strebelle = bt.datasets.strebelle()
n = strebelle.count[0]
grid = bt.BlockModel((0, 0), (1, 1), (n, n))
three object-based candidates on a grid the size of strebelle, each about 30 % sand. sizes and angles given as a
(min, max) range get a fresh draw for each object: sinuous channels 8 cells wide trending north, and lenses 36 by
10 cells lying north-south or east-west.
channel = {"shape": "channel", "width": 8, "azimuth": (-20, 20), "amplitude": 12, "wavelength": 120}
lens = {"shape": "ellipsoid", "radii": (18, 5)}
candidates = {
"Channels": bt.object_training_image(grid, [channel | {"code": 1, "proportion": 0.28}], seed=4),
"Lenses, north-south": bt.object_training_image(
grid, [lens | {"code": 1, "proportion": 0.3, "azimuth": (-10, 10)}], seed=4
),
"Lenses, east-west": bt.object_training_image(
grid, [lens | {"code": 1, "proportion": 0.3, "azimuth": (80, 100)}], seed=4
),
}
for name, image in candidates.items():
print(f"{name}: sand {image['facies'].mean():.1%}")
Out:
Channels: sand 28.9%
Lenses, north-south: sand 30.4%
Lenses, east-west: sand 30.2%
the data are four holes through strebelle, drilled north along its channels. on a 2D grid the test follows Y by default. it counts the patterns of 4 consecutive cells down the holes and compares their frequencies with those of the image by their jensen-shannon divergence. it repeats the comparison for 200 sets of holes of the same lengths drilled at random through the image itself; the p-value is the share of those at least as divergent as the data.
columns = [30, 90, 150, 210]
drilled = np.zeros((n, n), bool)
drilled[:, columns] = True
holes = grid.coords[drilled.ravel()]
facies = strebelle.grid("facies")[0][drilled]
checks = {"Strebelle": bt.training_image_consistency(strebelle, "facies", holes, facies, seed=0)}
for name, image in candidates.items():
checks[name] = bt.training_image_consistency(image, "facies", holes, facies, seed=0)
for name, check in checks.items():
print(
f"{name}: distance {check['distance']:.4f}, p-value {check['p_value']:.3f}, "
f"unseen patterns {check['unseen']:.1%}"
)
Out:
Strebelle: distance 0.0049, p-value 0.413, unseen patterns 0.0%
Channels: distance 0.0047, p-value 0.667, unseen patterns 0.1%
Lenses, north-south: distance 0.0037, p-value 0.458, unseen patterns 0.0%
Lenses, east-west: distance 0.0226, p-value 0.005, unseen patterns 0.0%

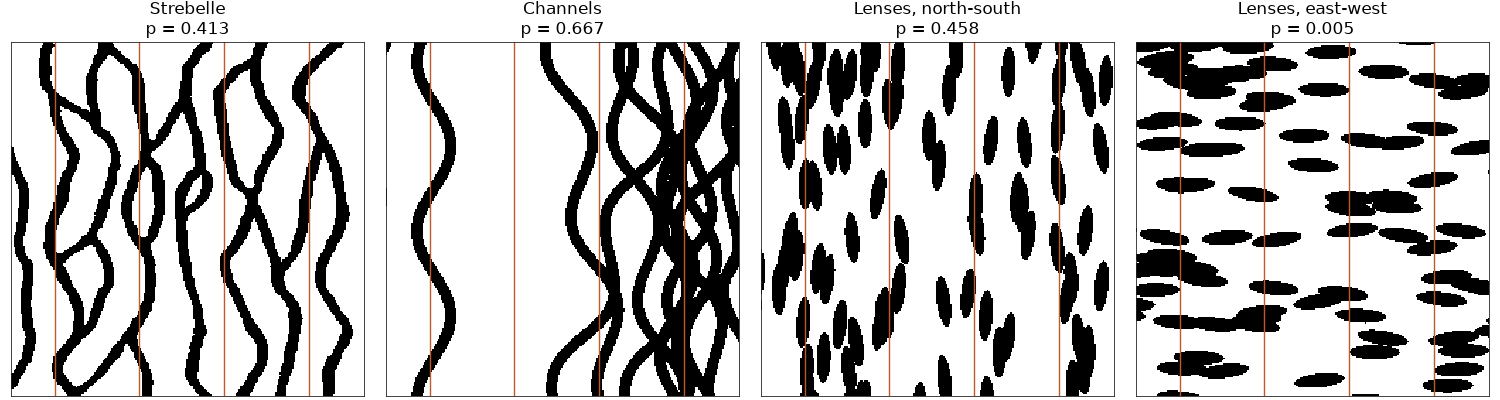

strebelle, the image the holes came from, passes, and so do the channels. east-west lenses fail: down a hole they are 10 cells thick, where the channels run on for dozens of cells. north-south lenses pass though they are no channels, since along the holes they look like them. one axis tests thickness, order and proportions; the shape and orientation of bodies need the geologist.
codes = ListedColormap(["white", "black"])
fig, axes = plt.subplots(1, 4, figsize=(15, 4), layout="constrained")
panels = [("Strebelle", strebelle)] + list(candidates.items())
for ax, (name, image) in zip(axes, panels):
ax.imshow(image.grid("facies")[0], origin="lower", cmap=codes, vmin=0, vmax=1, interpolation="nearest")
ax.set(title=f"{name}\np = {checks[name]['p_value']:.3f}", xticks=[], yticks=[])
for x in columns:
ax.axvline(x + 0.5, color=HIGHLIGHT, lw=1)
for side in ax.spines.values():
side.set(visible=True, color=INK, lw=0.6)
save(fig, "candidates")
a candidate that passes can still be wrong: these channels bunch in the east, which no hole along Y can see. one that fails holds patterns the wells rule out. several training images combines candidates by domain.
