Audit drill holes before modeling¶
A project hands you its drill hole database: collars, downhole surveys, assays and lithology, exported from the
logging software. Every later step (desurveying, compositing, variograms, estimation) trusts these tables. One
wrong dip moves a hole under the wrong lens; one -999 read as a grade drags an ore intercept to zero. You audit
the tables, decide for each problem whether to fix it, drop it or ask the geologist, and check again until no
unexplained flag is left.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, save
What you'll learn
- The classes of error a drill hole database carries, and which table each one lives in.
- How to sort each flag into fix by rule, fix by hand from evidence, drop, or query the geologist.
- How to prove the audit is finished: a second check where every remaining flag is explained.
Prerequisites: what collar, survey and interval tables hold. Checking drill holes lists every check used here; this page covers the decisions.
The data¶
The stacked sulphide lenses are three dipping polymetallic lenses cut by diamond (DD) and reverse circulation
(RC) holes. raw=True returns the tables as logged, with typical data-entry errors in them.
data = bt.datasets.stacked_sulphide_lenses(raw=True)
raw = {
"collar": data["collars"],
"survey": data["surveys"],
"assays": data["assays"],
"lithology": data["lithology"],
}
for name, table in raw.items():
print(f"{name:>9}: {table.num_rows:6} rows, columns {', '.join(table.column_names)}")
Out:
collar: 290 rows, columns HOLE_ID, X, Y, Z, LENGTH, TYPE
survey: 4326 rows, columns HOLE_ID, DEPTH, DIP, AZIMUTH
assays: 16907 rows, columns HOLE_ID, FROM, TO, ZN_PCT, PB_PCT, CU_PCT, AG_GPT, AU_GPT, DENSITY
lithology: 1726 rows, columns HOLE_ID, FROM, TO, LITH
Interval tables (assays, lithology) describe a hole as a stack of FROM–TO pieces measured along the hole from
the collar. Most of their errors break that stack:
Step 1: Run every check at once
check_drillholes takes the collar, the survey and a dict of interval tables and returns three tables:
flags (one boolean column per check, one row per record), a summary (rows and holes hit per check) and
details (the value behind each flag and its suggested replacement). max_depth="LENGTH" names the collar
column holding the hole length.
def check(t):
return bt.check_drillholes(
t["collar"], t["survey"], {"assays": t["assays"], "lithology": t["lithology"]}, max_depth="LENGTH"
)
def hit(flags, t, table, name):
return sorted(set(t[table]["HOLE_ID"][flags[table][name]]))
flags, summary, details = check(raw)
before = {}
print(f"{'table':>9} {'check':<12} {'rows':>5} {'holes':>5} examples")
for table, name, rows in zip(summary["table"], summary["check"], summary["rows"]):
if rows:
holes = hit(flags, raw, table, name)
before[table, name] = int(rows)
listed = ", ".join(repr(h) for h in holes[:4]) + (" ..." if len(holes) > 4 else "")
print(f"{table:>9} {name:<12} {rows:5.0f} {len(holes):5} {listed}")
Out:
table check rows holes examples
collar duplicate 2 2 'DD0058', 'DD0067'
collar no_survey 1 1 'DD0151'
collar no_assays 112 112 'DD0001', 'DD0002', 'DD0003', 'DD0004' ...
survey deviation 2 1 'DD0197'
survey dip_sign 28 1 'DD0116'
survey past_depth 5 1 'DD0055'
survey id_mismatch 13 1 'DD0104'
survey no_collar 8 1 'DD0111'
assays inverted 1 1 'DD0100'
assays gap 10 8 'DD0062', 'DD0080', 'DD0100', 'DD0200' ...
assays overlap 5 2 'DD0162', 'DD0200'
assays past_depth 4 1 'DD0055'
assays sentinel 5 1 'DD0110'
assays text_values 3 1 'DD0083'
assays id_mismatch 109 2 'DD0104', 'dd0062'
assays no_collar 127 1 'DD0111'
lithology gap 1 1 'DD0132'
lithology past_depth 2 1 'DD0055'
lithology id_mismatch 10 2 'DD0104', 'DD0132 '
lithology no_collar 7 1 'DD0111'
Twenty checks fire. The raw count means little: 104 of the 109 id_mismatch assay rows come from one trailing
space, while the two deviation rows are one flipped azimuth that bends DD0197 between its stations at 150 and
210 m. Each flag needs a decision.
Step 2: Look at the evidence behind the ambiguous flags
Four flags have no obvious answer. DD0067 has two collars with different coordinates; DD0055 has
samples below its recorded length; one DD0100 assay is inverted; DD0197 has a survey station whose
azimuth jumps. The other tables of each hole say which entry to trust.
c, s, a, lith = raw["collar"], raw["survey"], raw["assays"], raw["lithology"]
def rows_of(table, hole):
return table["HOLE_ID"] == hole
def deepest(hole):
return {
"survey": s["DEPTH"][rows_of(s, hole)].max(),
"assays": a["TO"][rows_of(a, hole)].max(),
"lithology": lith["TO"][rows_of(lith, hole)].max(),
}
for hole in ("DD0067", "DD0055"):
lengths = c["LENGTH"][rows_of(c, hole)]
ends = ", ".join(f"{k} {v:.2f}" for k, v in deepest(hole).items())
print(f"{hole}: collar LENGTH {', '.join(f'{v:.2f}' for v in lengths)} m; deepest {ends} m")
xy = np.c_[c["X"], c["Y"]][rows_of(c, "DD0067")]
print(f"DD0067 collar entries are {np.hypot(*(xy[1] - xy[0])):.0f} m apart")
inverted = a["FROM"] > a["TO"]
print(f"DD0100 inverted assay: FROM {a['FROM'][inverted][0]} TO {a['TO'][inverted][0]}")
dd0197 = rows_of(s, "DD0197")
print("DD0197 azimuths at 150, 180, 210 m:", s["AZIMUTH"][dd0197][5:8])
top = np.abs(s["DIP"][s["DEPTH"] == 0])
print(f"dip at the collar, all surveyed holes: {top.min():.0f} to {top.max():.0f} degrees")
Out:
DD0067: collar LENGTH 273.51, 174.68 m; deepest survey 273.51, assays 273.51, lithology 273.51 m
DD0055: collar LENGTH 707.50 m; deepest survey 812.56, assays 714.00, lithology 812.56 m
DD0067 collar entries are 290 m apart
DD0100 inverted assay: FROM 368.14 TO 366.14
DD0197 azimuths at 150, 180, 210 m: [292.14 111.81 291.9 ]
dip at the collar, all surveyed holes: 55 to 75 degrees
The evidence settles each one:
DD0067: its survey, assays and lithology all end at 273.51 m, the length of the first collar entry. The second entry (174.68 m, 290 m away) is wrong; theduplicaterule drops the later entry, which is the right one to drop here.DD0055: three tables agree the hole reaches 812.56 m, past the 707.50 m on the collar. The collar length is the typo; set it to the deepest survey station.DD0100: FROM 368.14, TO 366.14 is a 2 m sample with its ends swapped; swap them back.DD0197: 292.14° → 111.81° → 291.90° is a flip of 180° and back, a transcription error. Thedeviationrule drops the two stations the flip touches, and the stations on either side carry the hole.
Pitfall: sentinels read as grades
-999 and -99 mean "no value", but in a numeric column they average like any grade. DD0110 has a
-999 for zinc in the middle of its ore intercept:
dd0110 = rows_of(a, "DD0110") & (a["FROM"] >= 40.2) & (a["TO"] <= 47.07)
zn = np.asarray(a["ZN_PCT"][dd0110], dtype=float)
length = (a["TO"] - a["FROM"])[dd0110]
valid = zn > -99
print(f"DD0110, 40.20-47.07 m, {dd0110.sum()} assays: Zn values {zn}")
print(f" length-weighted Zn with -999 as a number: {np.average(zn, weights=length):.1f} %")
print(f" length-weighted Zn without it: {np.average(zn[valid], weights=length[valid]):.2f} %")
Out:
DD0110, 40.20-47.07 m, 7 assays: Zn values [ 2.979 -999. 4.227 1.945 2.758 3.834 2.692]
length-weighted Zn with -999 as a number: -139.9 %
length-weighted Zn without it: 3.07 %
One sentinel turns a 3.07 % zinc intercept into −139.9 %. A negative grade is easy to spot; a -99 in a column of
values near 100 is not. The readers in boitatá map sentinels to null by default (nodata=); this page reads the raw
tables with nodata=[] to keep the problem visible.
Step 3: Fix by hand what needs evidence
The manual fixes come first, so the rules in step 4 see corrected tables. Each hand fix is one line of code,
so the next person can rerun and review the audit. Trailing spaces are stripped from all
ids here: the collar 'DD0104 ' is the odd one, and a rename rule would copy its space into three tables.
DD0151 is dropped: without a survey it would be desurveyed as vertical, while every surveyed hole on the
project starts at a dip of 55–75°.
def replace(table, **columns):
return bt.Table({**{k: table[k] for k in table.column_names}, **columns})
def strip_ids(table):
return replace(table, HOLE_ID=[h.strip() for h in table["HOLE_ID"]])
tables = {name: strip_ids(t) for name, t in raw.items()}
a = tables["assays"]
swap = a["FROM"] > a["TO"]
tables["assays"] = replace(a, FROM=np.where(swap, a["TO"], a["FROM"]), TO=np.where(swap, a["FROM"], a["TO"]))
c, s = tables["collar"], tables["survey"]
dd0055 = rows_of(c, "DD0055")
tables["collar"] = replace(c, LENGTH=np.where(dd0055, s["DEPTH"][rows_of(s, "DD0055")].max(), c["LENGTH"]))
tables = {name: t.filter(~rows_of(t, "DD0151")) for name, t in tables.items()}
Step 4: Apply the rules
fix_drillholes takes the flags of the corrected tables and applies one named rule per check. The defaults
drop duplicates, flipped survey stations and rows of holes without a collar, rename ids to their collar
('dd0062' → 'DD0062'), keep the first of two overlapping intervals and set sentinels to null. Two rules are
chosen here: dip_sign="negate" turns DD0116's negative dips down like every other hole, and
text_values="half" reads <0.01 as half the detection limit (NS, not sampled, becomes null). The log
says what each rule did.
flags, _, _ = check(tables)
fixed, log = bt.fix_drillholes(flags, tables, dip_sign="negate", text_values="half")
for table, name, action, rows in zip(log["table"], log["check"], log["action"], log["rows"]):
if rows:
print(f"{action:>10} {rows:4.0f} {table} rows flagged {name}")
Out:
drop 2 collar rows flagged duplicate
drop 2 survey rows flagged deviation
drop 8 survey rows flagged no_collar
negate 28 survey rows flagged dip_sign
keep_first 5 assays rows flagged overlap
half 3 assays rows flagged text_values
null 5 assays rows flagged sentinel
drop 127 assays rows flagged no_collar
rename 5 assays rows flagged id_mismatch
drop 7 lithology rows flagged no_collar
Check before you move on
Run the same checks on the fixed tables. What remains must be on a list you can defend, hole by hole; the assertion fails if anything else is flagged.
flags, summary, _ = check(fixed)
after = {(t, n): int(r) for t, n, r in zip(summary["table"], summary["check"], summary["rows"]) if r}
rc_core = {"RC0008", "RC0014", "RC0016", "RC0031"}
accepted = {
("assays", "gap"): rc_core | {"DD0080", "DD0200"},
("collar", "no_assays"): None,
}
for key, rows in after.items():
holes = hit(flags, fixed, *key)
print(
f"{key[0]:>9} {key[1]:<10} {rows:4} rows: {', '.join(holes) if len(holes) <= 8 else f'{len(holes)} holes'}"
)
assert key in accepted, key
assert accepted[key] is None or set(holes) <= accepted[key], (key, holes)
lith = fixed["lithology"]
mineralized = set(lith["HOLE_ID"][np.isin(lith["LITH"], ["MS", "SMS", "STR"])])
unassayed = mineralized & set(hit(flags, fixed, "collar", "no_assays"))
print("no assays but logged mineralized:", sorted(unassayed))
Out:
collar no_assays 112 rows: 112 holes
assays gap 8 rows: DD0080, DD0200, RC0008, RC0014, RC0016, RC0031
no assays but logged mineralized: ['DD0043']
Two checks still fire, and every hole they name is explained. The RC gaps are core that was never
sampled. The DD0080 gaps are two lost samples, and the DD0200 gaps are the two intervals the overlap rule dropped. Of the 112 holes without assays, 111
never log a mineralized unit (MS, SMS, STR) and were not sent to the lab; DD0043 logs ore and has no
assays.
The audit changed the tables as follows:
names = {"collar": "collars", "survey": "surveys", "assays": "assays", "lithology": "lithology"}
print(f"{'table':>9} {'rows before':>12} {'rows after':>11} {'flagged before':>15} {'flagged after':>14}")
for name in names:
flagged_before = sum(v for (t, _), v in before.items() if t == name)
flagged_after = sum(v for (t, _), v in after.items() if t == name)
print(
f"{name:>9} {raw[name].num_rows:12} {fixed[name].num_rows:11} {flagged_before:15} {flagged_after:14}"
)

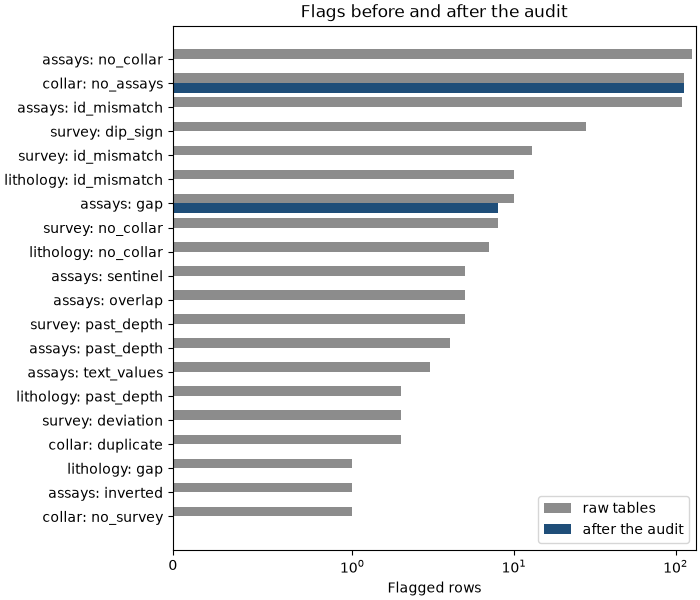

checks = sorted(before, key=lambda k: before[k])
fig, ax = plt.subplots(figsize=(7, 6), layout="constrained")
y = np.arange(len(checks))
ax.barh(y + 0.2, [before[k] for k in checks], height=0.4, color=GRAY, label="raw tables")
ax.barh(y - 0.2, [after.get(k, 0) for k in checks], height=0.4, color=ACCENT, label="after the audit")
ax.set_yticks(y, [f"{t}: {n}" for t, n in checks])
ax.set_xscale("symlog", linthresh=1)
ax.set(xlabel="Flagged rows", title="Flags before and after the audit")
ax.legend(loc="lower right")
save(fig, "flags")
Out:
table rows before rows after flagged before flagged after
collar 290 287 115 112
survey 4326 4316 56 0
assays 16907 16689 264 8
lithology 1726 1705 20 0
The decision¶
The fixed tables go on to desurveying and compositing. Five questions go to the geologist; until they are answered, the affected data stay as the table says:
| Hole | Question | Meanwhile |
|---|---|---|
DD0111 |
Where is its collar? 127 assays cannot be placed without one. | Dropped |
DD0151 |
Where is its downhole survey? | Dropped |
DD0043 |
Its lithology logs ore; where are its assays? | Kept, no grades |
DD0200 |
Of the two overlapping sample pairs, which is right? | First of each pair kept |
DD0080 |
Were the two missing samples lost, or never taken? | Left as gaps |
Keep the audit script with the project: rerunning it on the next database export repeats every decision and shows only what is new. Hole traces plots the flagged survey stations in plan and section, and desurvey is the next step.
Total running time of the script: ( 0 minutes 0.266 seconds)
