collocated cosimulation¶
SGS can condition a grade on a second variable known at each node: an exhaustive covariate, or a realization of
another grade simulated first. it draws each node from the collocated simple cokriging of its normal score from its
neighbors and the secondary score at the node itself. the cross-covariance is the correlation of the scores times
the primary covariance, so you need no cross-variogram. SGS.fit takes the secondary at the data and fits that
correlation; simulate takes the secondary at the nodes, one row per realization for simulated secondaries. here
jura Co, cosimulated realization by realization with simulated Ni, against Co simulated alone.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, HIGHLIGHT, save
samples = bt.datasets.jura()["prediction"]
xy = samples.coords
lag, max_lag = 0.1, 1.5
def unit_sill(values):
"""Spherical model of the normal scores of `values`, scaled to a unit sill."""
scores = bt.NormalScore().fit_transform(values)
return bt.experimental_variogram(xy, scores, lag, max_lag).fit("spherical").standardized()
print(f"{len(xy)} samples, correlation of Co and Ni {np.corrcoef(samples['Co'], samples['Ni'])[0, 1]:.2f}")
Out:
259 samples, correlation of Co and Ni 0.75
SGS simulates Ni first, 20 realizations on 50 m nodes, then Co twice with the same seeds: alone, and with row k
of the Ni realizations as the secondary of realization k. fit normal-scores Ni at the samples and fits the
correlation of the Co and Ni scores:
nodes = bt.BlockModel(origin=(0.6, 0.55), size=(0.05, 0.05), count=(87, 103))
search = bt.Search(radius=1.5, max_samples=24)
ni_model = unit_sill(samples["Ni"])
ni = bt.SGS(ni_model, search).fit(samples, "Ni").simulate(nodes, n=20, seed=1, keep=True)
model = unit_sill(samples["Co"])
alone = bt.SGS(model, search).fit(samples, "Co").simulate(nodes, n=20, seed=100, keep=True)
cosgs = bt.SGS(model, search).fit(samples, "Co", secondary="Ni")
with_ni = cosgs.simulate(nodes, n=20, seed=100, secondary=ni.realizations, keep=True)
print(f"correlation of Co and Ni scores at the samples: {cosgs.correlation:.2f}")
Out:
correlation of Co and Ni scores at the samples: 0.71

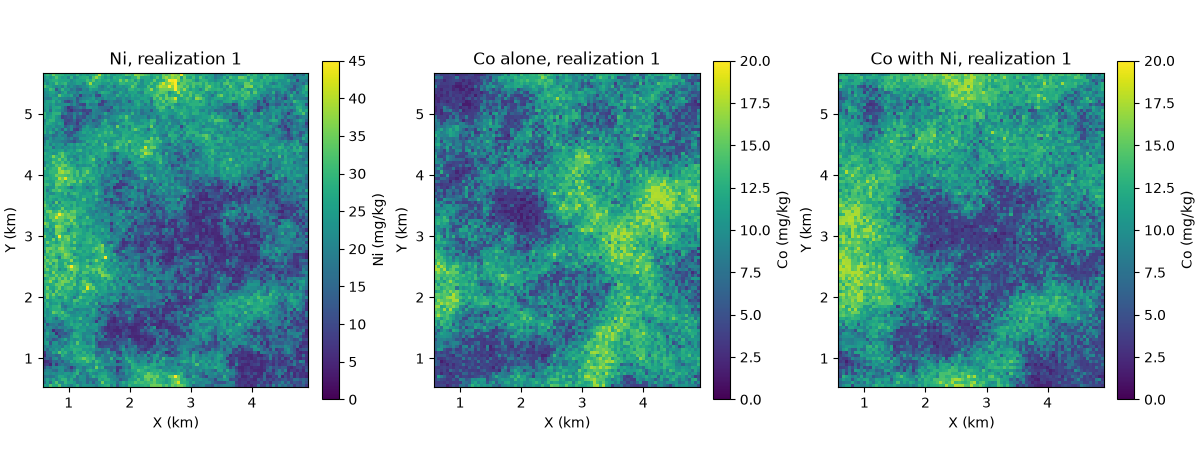

simulated alone, Co keeps its histogram and variogram but forgets Ni: away from the samples the two vary independently, and their correlation over the nodes falls to near zero. cosimulated, each realization of Co follows its own Ni realization and the correlation comes back:
checks = {
name: bt.check_realizations(
nodes, [ni, co], samples, ["Ni", "Co"], variogram=[ni_model, model], lag=lag, max_lag=max_lag
)
for name, co in [("alone", alone), ("with Ni", with_ni)]
}
for name, check in checks.items():
r = check.correlations[:, 0, 1]
print(
f"Co {name:8} correlation with Ni {r.min():.2f} to {r.max():.2f} (samples {check.data_correlation[0, 1]:.2f})"
)
Out:
Co alone correlation with Ni -0.14 to 0.20 (samples 0.75)
Co with Ni correlation with Ni 0.69 to 0.84 (samples 0.75)
extent = (0.575, 4.925, 0.525, 5.675)
fig, axes = plt.subplots(1, 3, figsize=(12, 4.6), layout="constrained")
for ax, image, title, label in (
(axes[0], ni.realizations[0], "Ni, realization 1", "Ni (mg/kg)"),
(axes[1], alone.realizations[0], "Co alone, realization 1", "Co (mg/kg)"),
(axes[2], with_ni.realizations[0], "Co with Ni, realization 1", "Co (mg/kg)"),
):
top = 45 if label.startswith("Ni") else 20
im = ax.imshow(nodes.grid(image)[0], origin="lower", extent=extent, vmin=0, vmax=top)
ax.set(title=title, xlabel="X (km)", ylabel="Y (km)", aspect="equal")
fig.colorbar(im, ax=ax, shrink=0.75, label=label)
save(fig, "maps")

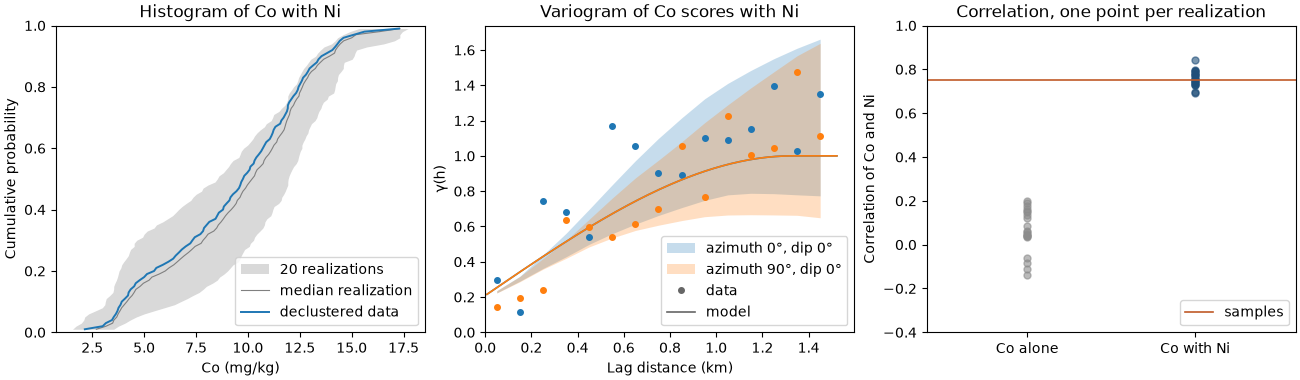

the cosimulated Co still reproduces its own histogram and variogram (the realization checks), and its correlation with Ni, 0.69 to 0.84 across realizations, brackets the samples' 0.75. simulated alone, Co keeps little of it.
fig, axes = plt.subplots(1, 3, figsize=(13, 3.8), layout="constrained")
check = checks["with Ni"]
bt.plot.histogram_reproduction(check, variable="Co", ax=axes[0])
axes[0].set(xlabel="Co (mg/kg)", title="Histogram of Co with Ni")
bt.plot.variogram_reproduction(check, variable="Co", ax=axes[1])
axes[1].set(xlabel="Lag distance (km)", title="Variogram of Co scores with Ni")
for x, (name, c) in enumerate(checks.items()):
r = c.correlations[:, 0, 1]
axes[2].plot(np.full(r.size, x), r, "o", ms=5, alpha=0.6, color=GRAY if x == 0 else ACCENT)
axes[2].axhline(check.data_correlation[0, 1], color=HIGHLIGHT, lw=1.2, label="samples")
axes[2].set(xlim=(-0.6, 1.6), xticks=[0, 1], xticklabels=["Co alone", "Co with Ni"], ylim=(-0.4, 1))
axes[2].set(ylabel="Correlation of Co and Ni", title="Correlation, one point per realization")
axes[2].legend(loc="lower right")
save(fig, "checks")
DSS takes the same secondary and correlation arguments. it
kriges the grades of Co with their own variogram, standardizes Co and Ni by their declustered means and standard
deviations instead of normal-scoring them, and cokriges each node in those units. the node is then drawn from the
histogram of Co with the cokriged mean and variance. DSS.fit fits the correlation of the grades:
import warnings
fitted = bt.experimental_variogram(xy, samples["Co"], lag, max_lag).fit("spherical")
grades = bt.Variogram(
[("spherical", fitted.structures[0].sill, fitted.structures[0].range)], nugget=fitted.nugget
)
codss = bt.DSS(grades, search).fit(samples, "Co", secondary="Ni")
with warnings.catch_warnings():
warnings.simplefilter("ignore")
dss_with_ni = codss.simulate(nodes, n=20, seed=100, secondary=ni.realizations, keep=True)
r = [np.corrcoef(co, n)[0, 1] for co, n in zip(dss_with_ni.realizations, ni.realizations)]
print(f"correlation of Co and Ni grades at the samples: {codss.correlation:.2f}")
print(f"co-DSS: correlation of Co and Ni over the nodes {min(r):.2f} to {max(r):.2f}")
Out:
correlation of Co and Ni grades at the samples: 0.75
co-DSS: correlation of Co and Ni over the nodes 0.70 to 0.85
the co-DSS realizations follow their Ni realizations as closely as the cosimulated SGS ones: their correlation with Ni brackets the samples' 0.75. the block above silences the warning on nodes DSS draws from the nearest reachable mean and variance.
Total running time of the script: ( 0 minutes 1.238 seconds)
