soft data in SNESIM¶
hard data are rare; a probability of each category at each cell, from seismic or a geological interpretation, is
common. soft gives SNESIM one probability per category and cell, and SNESIM weighs them against the patterns of the
training image instead of copying them.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import INK, save
from matplotlib.colors import ListedColormap
ti = bt.datasets.strebelle()
nx, ny = ti.count[:2]
image = ti.grid("facies")[0]
grid = bt.BlockModel((0, 0), (1, 1), (nx, ny))
the image stands in for the truth again. its sand indicator averaged over 11 by 11 cells plays the part of a seismic probability of sand: it knows where the channels lie and misses their edges.
def smooth(img, width):
kernel = np.ones(width) / width
rows = np.apply_along_axis(np.convolve, 1, img, kernel, "same")
return np.apply_along_axis(np.convolve, 0, rows, kernel, "same")
p_soft = np.clip(smooth(image, 11), 0.02, 0.98)
soft = np.column_stack([1 - p_soft.ravel(), p_soft.ravel()])
print(f"soft P(sand) from {p_soft.min():.2f} to {p_soft.max():.2f}, mean {p_soft.mean():.2f}")
Out:
soft P(sand) from 0.02 to 0.97, mean 0.28
twenty realizations without and with the soft probabilities. at each cell the probability read from the patterns,
P_ti, and the soft one combine by permanence of ratios, P(c) ∝ P_ti(c) * P_soft(c) / P0(c) with P0 the
image's proportions. a soft probability equal to the image's share of sand changes nothing, and one near 0 or 1
overrules the patterns.
snesim = bt.SNESIM(ti, "facies")
summaries = {
"patterns only": snesim.simulate(grid, n=20, seed=5, keep=[0]),
"with soft data": snesim.simulate(grid, n=20, seed=5, keep=[0], soft=soft),
}
for name, summary in summaries.items():
p_sand = summary.probabilities[:, 1]
hits = (summary.realizations[0] == image.ravel()).mean()
print(
f"{name}: sand {summary.proportions[:, 1].mean():.1%}, realization 1 matches the image in {hits:.0%} of cells, "
f"P(sand) against soft r = {np.corrcoef(p_sand, p_soft.ravel())[0, 1]:.2f}"
)
Out:
patterns only: sand 29.7%, realization 1 matches the image in 58% of cells, P(sand) against soft r = -0.03
with soft data: sand 29.9%, realization 1 matches the image in 82% of cells, P(sand) against soft r = 0.96

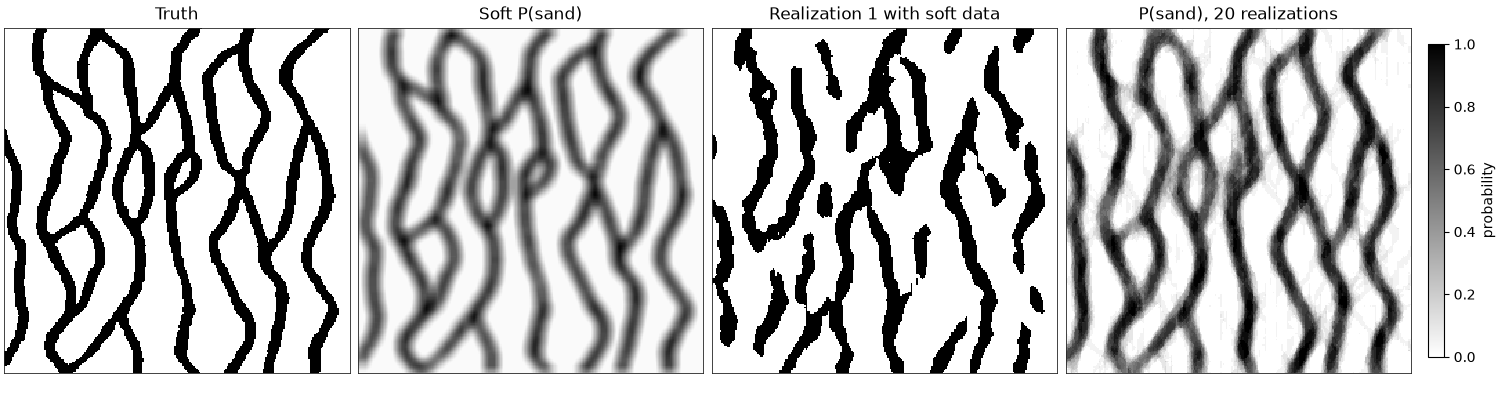

without soft data a realization matches the truth no better than chance; with it, in four cells of five. the channels sit where the soft probability is high and keep the image's width, but break where the patterns and the soft map disagree, most often where two channels cross. the probability of 20 realizations is sharper than the soft map it came from: the patterns turn a smooth 0.5 into either a channel or none.
codes = ListedColormap(["white", "black"])
fig, axes = plt.subplots(1, 4, figsize=(15, 4), layout="constrained")
panels = (
(image, "Truth", codes),
(p_soft, "Soft P(sand)", "gray_r"),
(grid.grid(summaries["with soft data"].realizations[0])[0], "Realization 1 with soft data", codes),
(grid.grid(summaries["with soft data"].probabilities[:, 1])[0], "P(sand), 20 realizations", "gray_r"),
)
for ax, (img, title, cmap) in zip(axes, panels):
im = ax.imshow(img, origin="lower", cmap=cmap, vmin=0, vmax=1, interpolation="nearest")
ax.set(title=title, xticks=[], yticks=[])
for side in ax.spines.values():
side.set(visible=True, color=INK, lw=0.6)
fig.colorbar(im, ax=axes[3], shrink=0.8, label="probability")
save(fig, "soft")
hard data override the soft probabilities at their cells, and both combine with anisotropy, domains and the
servosystem. image quilting takes soft data too,
as a cost instead of a probability.
