simulation with a trend

far from the data, SGS draws from the global histogram at any location. a trend known at all nodes can steer it instead.

import sys
from pathlib import Path

HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))

import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import map_axes, save
from matplotlib.colors import PowerNorm

samples = bt.datasets.walker_lake()
xy, v = samples.coords, samples["V"]
weights = bt.cell_declustering(xy, v, sizes=np.arange(2.5, 102.5, 2.5)).weights
grid = bt.BlockModel(origin=(0.5, 0.5), size=(5, 5), count=(52, 60))

here the trend is a moving-window average of V within 40 m, built with an existing estimator; any model or estimate would do. trend= gives it at the data to fit and at the nodes to simulate, as an array or the name of a BlockModel column.

window = bt.MovingAverage(bt.Search(radius=40, max_samples=200)).fit(xy, v)
trend = window.predict(xy)
trended = grid.with_column("trend", window.predict(grid))

SGS normal-scores the data within 8 equal-probability classes of the trend: the stepwise conditional transform of multivariate transforms on (trend, V), which leaves scores independent of the trend. it simulates those scores with their own variogram and back-transforms each node with the histogram of its trend class. plain SGS, for comparison, uses the variogram of global normal scores; both variograms have a unit sill.

pair = np.column_stack([trend, v])
scores = bt.StepwiseConditional(classes=8).fit(pair, weights=weights).transform(pair)[:, 1]
y = bt.NormalScore(tails=(0.0, v.max())).fit_transform(v, weights=weights)


def unit_sill(values):
    return bt.experimental_variogram(xy, values, 10.0, 150.0).fit("spherical").standardized()


score_variogram, plain_variogram = unit_sill(scores), unit_sill(y)
print(score_variogram, plain_variogram, sep="\n")

search = bt.Search(radius=100, max_samples=24)
with_trend = bt.SGS(score_variogram, search, classes=8).fit(xy, v, weights=weights, trend=trend)
by_trend = with_trend.simulate(trended, n=20, seed=5, keep=True, trend="trend").realizations
plain = bt.SGS(plain_variogram, search).fit(xy, v, weights=weights)
by_sgs = plain.simulate(grid, n=20, seed=5, keep=True).realizations

Out:

Variogram(nugget=0.19038648061160174, structures=[Structure("spherical", sill=0.8096135193883983, range=22.62299198336531)], rotation=(0.0, 0.0, 0.0), ratios=(1.0, 1.0))
Variogram(nugget=0.3405226282644493, structures=[Structure("spherical", sill=0.6594773717355508, range=51.76429044224697)], rotation=(0.0, 0.0, 0.0), ratios=(1.0, 1.0))

node_trend = trended["trend"]
cov = np.cov(v, trend, aweights=weights)
print(f"correlation with the trend: data {cov[0, 1] / np.sqrt(cov[0, 0] * cov[1, 1]):.2f}", end="")
for name, reals in (("SGS", by_sgs), ("SGS with trend", by_trend)):
    print(f", {name} {np.mean([np.corrcoef(r, node_trend)[0, 1] for r in reals]):.2f}", end="")
edges = np.quantile(node_trend, [0.25, 0.5, 0.75])
at_data, at_nodes = np.digitize(trend, edges), np.digitize(node_trend, edges)
print(f"\n{'mean V (ppm) by trend quartile':<32}{'data':>6}{'SGS':>6}{'SGS with trend':>16}")
for k in range(4):
    data_mean = np.average(v[at_data == k], weights=weights[at_data == k])
    plain_mean, trend_mean = (reals[:, at_nodes == k].mean() for reals in (by_sgs, by_trend))
    print(f"{f'quartile {k + 1}':<32}{data_mean:6.0f}{plain_mean:6.0f}{trend_mean:16.0f}")

Out:

correlation with the trend: data 0.52, SGS 0.45, SGS with trend 0.49
mean V (ppm) by trend quartile    data   SGS  SGS with trend
quartile 1                         106   145             114
quartile 2                         267   261             262
quartile 3                         320   328             321
quartile 4                         450   449             451

extent = (0.5, 260.5, 0.5, 300.5)
norm = PowerNorm(0.5, vmin=0, vmax=1500)
fig, axes = plt.subplots(1, 3, figsize=(11.5, 4.4), layout="constrained")
panels = [
    (node_trend, "Moving-window trend, 40 m"),
    (by_sgs[0], "SGS, realization 1"),
    (by_trend[0], "SGS with the trend, realization 1"),
]
for ax, (image, title) in zip(axes, panels):
    im = ax.imshow(grid.grid(image)[0], origin="lower", extent=extent, norm=norm)
    map_axes(ax, title)
fig.colorbar(im, ax=axes, shrink=0.8, label="V (ppm)")
save(fig, "trend")

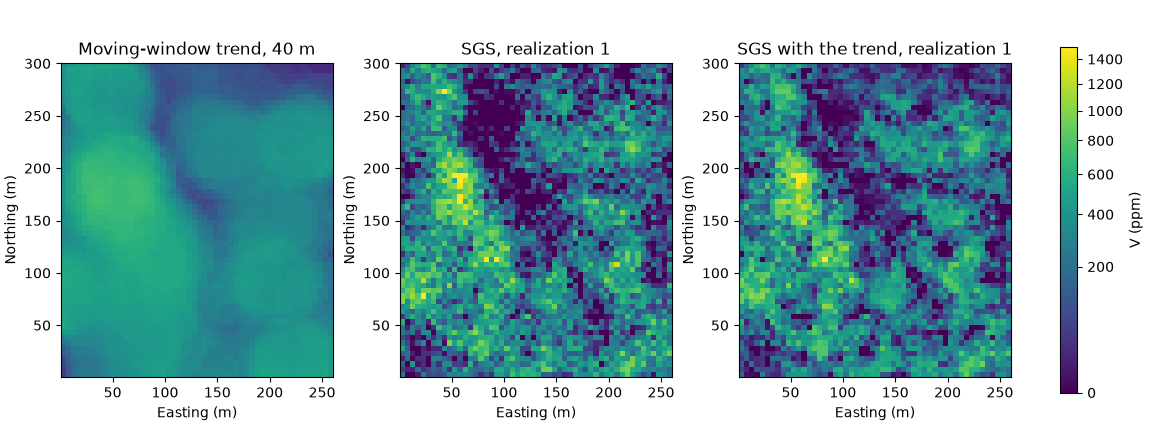

Moving-window trend, 40 m, SGS, realization 1, SGS with the trend, realization 1

plain SGS follows the trend where data are dense, but pulls the low-trend quarter up towards the global mean. with the trend, each quarter keeps the declustered mean of its data, and the realizations correlate with the trend about as much as the data do.

Total running time of the script: ( 0 minutes 0.343 seconds)
