Drill-hole spacing from a learning curve¶
Virtual grids drilled simulated truths of Walker Lake on regular grids to find the spacing a production volume needs. A deposit with years of drilling already holds that relation in its own data: dense areas and sparse areas sit side by side. Cabral Pinto's learning curve reads it from one conditional simulation. You map the data spacing, measure the uncertainty of every production window, plot one against the other, and compare the curve with the virtual grids and with the exhaustive truth.
import sys
import warnings
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, HIGHLIGHT, INK, map_axes, save
What you'll learn
- How to measure data spacing at every node with Cabral Pinto's equivalent spacing.
- How to build a learning curve of window uncertainty against data spacing, and read a required spacing from it.
- How the learning curve and Wilde's virtual grids check each other (Wilde, 2010, §5.3).
Prerequisites: virtual grids, which sets up the model, the windows and the MEE; data spacing.
The data¶
The setup repeats the virtual-grid study: the normal-score variogram of the declustered V, turning bands on 2 m nodes, and moving windows of 40 × 40 m (a quarter) over 8 m panels and 80 × 80 m (a year) over 16 m panels. Walker Lake also has an exhaustive grid of V, averaged here to the 2 m nodes; a real deposit has no such truth, and here it tests the result.
samples = bt.datasets.walker_lake()
xy, v = samples.coords, samples["V"]
weights = bt.cell_declustering(samples, "V", sizes=np.arange(2.5, 102.5, 2.5)).weights
scores = bt.NormalScore().fit(v, weights=weights).transform(v)
azimuths = (170, 260)
directional = [bt.experimental_variogram(xy, scores, 10, 120, azimuth=a) for a in azimuths]
fitted = bt.Variogram.fit_directional(directional, [(a, 0) for a in azimuths], rotation=[170, 0, 0])
gaussian = fitted.standardized()
nodes = bt.BlockModel(origin=(1, 1), size=(2, 2), count=(130, 150))
panels = {
side: bt.BlockModel(origin=(1, 1), size=(side / 5,) * 2, count=(1280 // side, 1480 // side))
for side in (40, 80)
}
tb = bt.TurningBands(gaussian, bands=500, search=bt.Search(radius=100, max_samples=24)).fit(
xy, v, weights=weights
)
truth = bt.datasets.walker_lake_exhaustive()["V"].reshape(150, 2, 130, 2).mean(axis=(1, 3)).ravel()
def inside(side):
"""Panels whose window of `side` meters lies inside the panels."""
c = panels[side].coords[:, :2] - 1
extent = np.array([1280 // side, 1480 // side]) * side / 5
return ((c >= side / 2) & (c <= extent - side / 2)).all(axis=1)
def window_mean(values, side):
"""Mean of node `values` over the window of each panel, NaN outside the area."""
total = np.pad(nodes.grid(values)[0], ((1, 0), (1, 0))).cumsum(0).cumsum(1)
k = side // 2
i0, j0 = ((panels[side].coords[:, :2] - side / 2 - 1) / 2).round().astype(int).T
i0, j0 = np.clip(i0, 0, 130 - k), np.clip(j0, 0, 150 - k)
s = total[j0 + k, i0 + k] - total[j0, i0 + k] - total[j0 + k, i0] + total[j0, i0]
return np.where(inside(side), s / k**2, np.nan)
print(f"{len(xy)} samples, {len(truth)} nodes; true mean V {truth.mean():.1f} ppm")
Out:
470 samples, 19500 nodes; true mean V 278.0 ppm

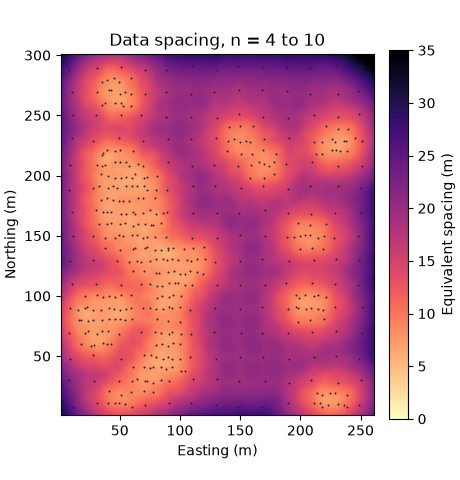

Step 1: Data spacing at every node
data_spacing with search=None works in plan. At each node it takes the distances \(d_n\) to the nearest
samples, sets \(r = (d_n + d_{n+1}) / 2\), the radius of a circle that holds \(n\) samples, and returns
the side of the square each sample stands for, \(\sqrt{\pi r^2 / n}\), averaged over \(n = 4, \dots, 10\).
In 3D, give a Search and drill holes: the spacing becomes \(\sqrt{V / (c\, n)}\) with \(V\) the volume of
the search ellipsoid, \(c\) the composite length and \(n\) the composites inside.
spacing = bt.data_spacing(nodes, samples, None)
p10, p50, p90 = np.percentile(spacing, [10, 50, 90])
print(f"data spacing: median {p50:.2f} m, P10 {p10:.1f} m, P90 {p90:.1f} m")
fig, ax = plt.subplots(figsize=(4.6, 4.8), layout="constrained")
image = ax.imshow(
nodes.grid(spacing)[0], origin="lower", extent=(1, 261, 1, 301), cmap="magma_r", vmin=0, vmax=35
)
ax.scatter(*xy[:, :2].T, s=2, color=INK, linewidths=0)
fig.colorbar(image, ax=ax, shrink=0.8, label="Equivalent spacing (m)")
map_axes(ax, "Data spacing, n = 4 to 10")
save(fig, "spacing_map")
Out:
data spacing: median 15.60 m, P10 8.0 m, P90 22.0 m
The median data spacing is 15.6 m; the infilled high-grade areas read under 8 m and the edges over 22 m.
Step 2: Uncertainty of every window
One conditional simulation of 100 realizations, summarized at each window size, gives the MEE of every
window with relative_error. Each window takes the mean data spacing of its nodes.
windows = {}
for side in (40, 80):
summary = tb.simulate(
nodes,
n=100,
seed=11,
blocks=panels[side],
window=(side, side),
quantiles=[0.05, 0.95],
)
windows[side] = (summary, window_mean(spacing, side), window_mean(truth, side))
keep = inside(side)
mee = summary.relative_error()[keep]
print(
f"{side} m windows: {keep.sum()}, MEE median {np.median(mee):.1%}, {np.mean(mee <= 0.15):.1%} at or below 15 %"
)
Out:
40 m windows: 924, MEE median 26.8%, 15.9% at or below 15 %
80 m windows: 168, MEE median 16.1%, 43.5% at or below 15 %
Step 3: The learning curve
uncertainty_curve bins the windows by data spacing, 2 m wide, and gives the median (P50) and P90 of MEE
in each bin. required_spacing reads where each crosses 15 %.
curves, required = {}, {}
for side, (summary, at_window, _) in windows.items():
keep = inside(side)
curves[side] = bt.uncertainty_curve(
at_window[keep], summary.relative_error()[keep], bins=np.arange(4, 32, 2)
)
with warnings.catch_warnings():
warnings.simplefilter("ignore")
required[side] = {q: bt.required_spacing(curves[side], column=q) for q in ("P50", "P90")}
print(
f"{side} m windows: required spacing {required[side]['P50']:.1f} m (median), {required[side]['P90']:.1f} m (P90)"
)
Out:
40 m windows: required spacing 9.9 m (median), 8.8 m (P90)
80 m windows: required spacing 14.2 m (median), 12.7 m (P90)
A quarterly window meets ±15 % at the median up to 9.9 m of data spacing and at the P90 up to 8.8 m; a yearly window up to 14.2 m and 12.7 m.

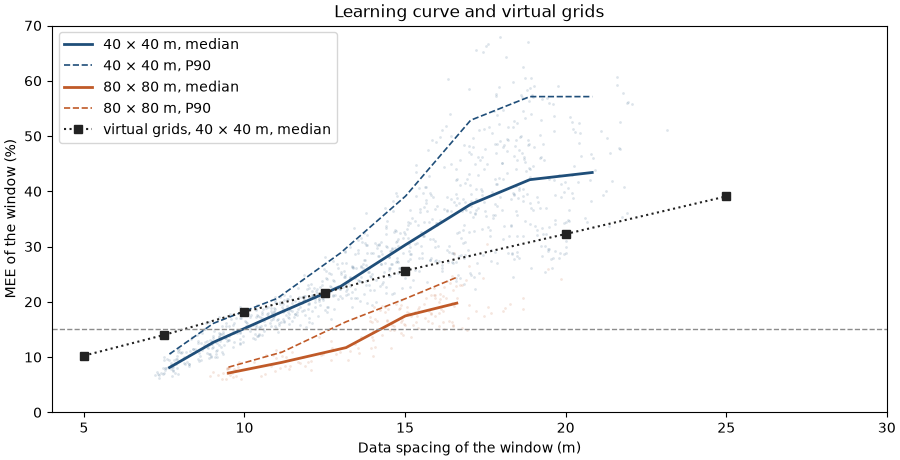

Step 4: Overlay the virtual grids
Wilde (2010, §5.3) checks one method with the other. spacing_study repeats the quarterly virtual grids of the
previous page, and its median MEE per grid goes on the same axes. A grid of spacing \(s\) has an equivalent
data spacing of \(s\), so both curves share the x axis.
study = bt.spacing_study(
tb,
nodes,
spacings=[5, 7.5, 10, 12.5, 15, 20, 25],
truths=3,
seed=101,
n=50,
blocks=panels[40],
window=(40, 40),
composite_length=np.inf,
)
study = study.filter(inside(40)[np.asarray(study["row"], dtype=int)])
grid = bt.uncertainty_curve("spacing", "mee", bins=[4, 6, 8.5, 11, 13.5, 17, 22, 27], data=study)
fig, ax = plt.subplots(figsize=(9, 4.6), layout="constrained")
for (side, curve), color in zip(curves.items(), (ACCENT, HIGHLIGHT), strict=True):
summary, at_window, _ = windows[side]
keep = inside(side)
ax.scatter(
at_window[keep], 100 * summary.relative_error()[keep], s=4, color=color, alpha=0.15, linewidths=0
)
ax.plot(curve["spacing"], 100 * curve["P50"], "-", color=color, lw=2, label=f"{side} × {side} m, median")
ax.plot(curve["spacing"], 100 * curve["P90"], "--", color=color, lw=1.2, label=f"{side} × {side} m, P90")
ax.plot(grid["spacing"], 100 * grid["P50"], "s:", color=INK, label="virtual grids, 40 × 40 m, median")
ax.axhline(15, color=GRAY, ls="--", lw=1)
ax.set(xlabel="Data spacing of the window (m)", ylabel="MEE of the window (%)", xlim=(4, 30), ylim=(0, 70))
ax.set_title("Learning curve and virtual grids")
ax.legend(loc="upper left")
save(fig, "learning_curve")
for s, p50 in zip(grid["spacing"], grid["P50"], strict=True):
print(f"virtual grid {s:4.1f} m: median MEE {p50:.1%}")
Out:
virtual grid 5.0 m: median MEE 10.3%
virtual grid 7.5 m: median MEE 14.0%
virtual grid 10.0 m: median MEE 18.2%
virtual grid 12.5 m: median MEE 21.7%
virtual grid 15.0 m: median MEE 25.6%
virtual grid 20.0 m: median MEE 32.3%
virtual grid 25.0 m: median MEE 39.1%
Up to 12.5 m the virtual grids lie up to 3 points above the quarterly median of the learning curve: their median crosses 15 % near 8 m, against 9.9 m. Beyond 13 m they fall below it. The sparse windows of the learning curve sit at the edges of the area, with data on one side only, while a virtual grid has holes all around every window. Where the deposit has both kinds of data, the two methods agree within 2 m on the required spacing.
Key idea
The learning curve needs one simulation of the current data; virtual grids need one per spacing and truth. The learning curve only spans the spacings the deposit already has, and virtual grids reach any spacing.
Check before you move on
Walker Lake's exhaustive grid tests the MEE: for a calibrated model, the true grade of about 90 % of the
windows lies within the MEE of the simulated mean. SimulationSummary.validate counts them.
for side, (summary, _, true_window) in windows.items():
keep = inside(side)
check = summary.validate(np.nan_to_num(true_window))
print(f"{side} m windows: truth within the MEE in {np.mean(check['covered'][keep]):.1%}")
Out:
40 m windows: truth within the MEE in 78.1%
80 m windows: truth within the MEE in 84.5%
The MEE covers the truth in 78.1 % of the quarterly windows and 84.5 % of the yearly ones, short of 90 %: the model understates the uncertainty a little, so read the required spacings as upper bounds.
The decision¶
On the learning curve, 90 % of the yearly windows meet ±15 % where the data spacing is 12.7 m or less; the virtual grids gave 11.4 m. Drill to about 11 m for yearly planning, and leave the quarters to grade control.
