block kriging¶
block kriging estimates the average of V over a block instead of its value at the center. walker lake's true block
averages are known, so you can check block and point estimates against them for several block sizes.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, HIGHLIGHT, save
samples = bt.datasets.walker_lake()
truth = bt.datasets.walker_lake_exhaustive()["V"].reshape(300, 260)
azimuths = np.arange(0, 180, 22.5)
directional = [bt.experimental_variogram(samples, "V", 10.0, 120.0, azimuth=a) for a in azimuths]
model = bt.Variogram.fit_directional(
directional, [(a, 0) for a in azimuths], ["spherical", "spherical"], weighting="count/gamma"
)
search = bt.Search(radius=80, max_samples=24, min_samples=4, rotation=model.rotation, ratios=(0.5, 1.0))
BlockKriging averages the variogram between the samples and a grid of points inside each block, discretization of
them along x, y and z. its targets are block centers. the truth is the mean of the 100 exhaustive values in each 10 ×
10 m block.
blocks = bt.BlockModel(origin=(0, 0), size=(10, 10), count=(26, 30))
block = bt.BlockKriging(model, search, size=(10, 10), discretization=(5, 5, 1)).fit(samples, "V")
point = bt.OrdinaryKriging(model, search).fit(samples, "V")
block_estimate, block_variance = block.predict(blocks, return_variance=True)
point_estimate, point_variance = point.predict(blocks, return_variance=True)
true_blocks = truth.reshape(30, 10, 26, 10).mean(axis=(1, 3)).ravel()
for name, e, var in (
("block kriging", block_estimate, block_variance),
("point kriging", point_estimate, point_variance),
):
print(
f"{name}: RMSE {bt.compare(e, true_blocks)['rmse']:.1f} ppm, mean kriging variance {np.nanmean(var):.0f}"
)
print(
f"actual mean squared error of block kriging {bt.compare(block_estimate, true_blocks)['rmse'] ** 2:.0f}"
)
Out:
block kriging: RMSE 101.5 ppm, mean kriging variance 19404
point kriging: RMSE 105.8 ppm, mean kriging variance 54073
actual mean squared error of block kriging 10303

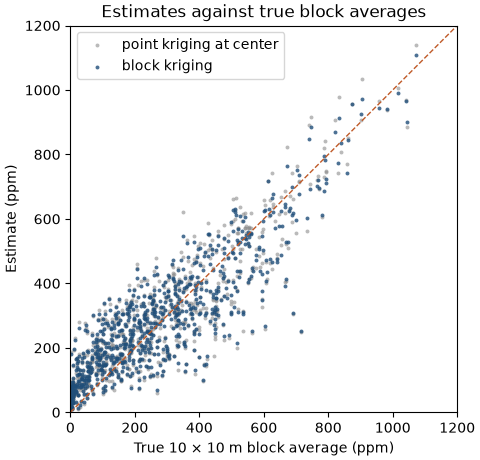

the two estimates are close, and block kriging is a little more accurate against the block averages. the larger difference is in the variance: point kriging reports the error of predicting one point, nugget included, while block kriging reports the error of predicting the block mean, a third of it here. the actual mean squared error of the block estimates, 10 303, is below even that, as the model's variance was pessimistic in ordinary kriging too.
fig, ax = plt.subplots(figsize=(4.8, 4.6), layout="constrained")
ax.scatter(
true_blocks, point_estimate, s=8, color=GRAY, alpha=0.6, linewidths=0, label="point kriging at center"
)
ax.scatter(true_blocks, block_estimate, s=8, color=ACCENT, alpha=0.8, linewidths=0, label="block kriging")
ax.plot([0, 1200], [0, 1200], color=HIGHLIGHT, lw=1, ls="--")
ax.set(xlim=(0, 1200), ylim=(0, 1200), xlabel="True 10 × 10 m block average (ppm)", ylabel="Estimate (ppm)")
ax.set_aspect("equal")
ax.set_title("Estimates against true block averages")
ax.legend(loc="upper left")
save(fig, "blocks")
block size¶
larger blocks average more of the short-scale variation away. diagnostics reports support_variance, the variance
of true block values the model predicts (sill minus the mean variogram within the block, nugget excluded), and
estimate_variance, the variance of the estimates it predicts.
sizes = (5, 10, 20)
rows = []
for size in sizes:
grid = bt.BlockModel(origin=(0, 0), size=(size, size), count=(260 // size, 300 // size))
d = bt.BlockKriging(model, search, size=(size, size)).fit(samples, "V").predict(grid, diagnostics=True)
true = truth.reshape(300 // size, size, 260 // size, size).mean(axis=(1, 3)).ravel()
rows.append(
(
np.nanvar(d["value"]),
np.nanmean(d["estimate_variance"]),
true.var(),
np.nanmean(d["support_variance"]),
)
)
print(
f"{size:>2} m blocks: variance of estimates {rows[-1][0]:6.0f} (model {rows[-1][1]:6.0f}), "
f"of true blocks {rows[-1][2]:6.0f} (model {rows[-1][3]:6.0f})"
)
fig, ax = plt.subplots(figsize=(5.5, 3.6), layout="constrained")
rows = np.array(rows)
ax.plot(sizes, rows[:, 2], "o-", color=HIGHLIGHT, label="true blocks")
ax.plot(sizes, rows[:, 3], "o--", color=HIGHLIGHT, alpha=0.5, label="true blocks, model")
ax.plot(sizes, rows[:, 0], "o-", color=ACCENT, label="block kriging")
ax.plot(sizes, rows[:, 1], "o--", color=ACCENT, alpha=0.5, label="block kriging, model")
ax.set(xlabel="Block size (m)", ylabel="Variance (ppm²)", ylim=(0, None))
ax.set_xticks(sizes)
ax.set_title("Variance against block size")
ax.legend()
save(fig, "sizes")
Out:
5 m blocks: variance of estimates 37470 (model 43577), of true blocks 52287 (model 67472)
10 m blocks: variance of estimates 35207 (model 40355), of true blocks 46694 (model 57129)
20 m blocks: variance of estimates 30203 (model 34703), of true blocks 37617 (model 41648)

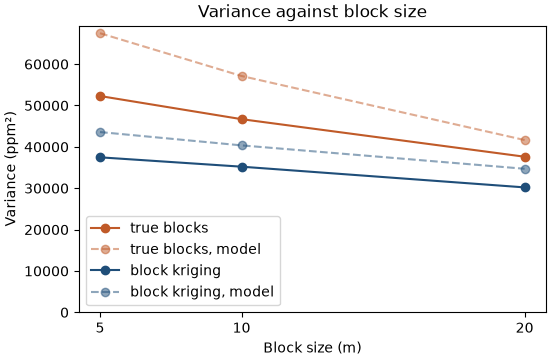

the variance of true block values falls with block size, from 52 287 for 5 m blocks to 37 617 for 20 m blocks, and the estimates stay below it at every size. kriging smooths, so selecting blocks on the estimates misclassifies some of them. the gap narrows as the blocks grow, one reason not to estimate blocks much smaller than the data spacing. the model overstates both variances, the true one most for small blocks, but gets their order and trend right.
Total running time of the script: ( 0 minutes 0.340 seconds)
