plurigaussian simulation¶
plurigaussian simulation (PGS) draws categories by truncating gaussian fields: thresholds set by the proportions cut each field into categories, and a rule says which categories may touch. SIS (sequential indicator simulation) gives each category its own indicator variogram; PGS controls the contacts between categories.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, save
rules¶
jura's rock types are known at each node of the prediction grid, so you can compare simulated maps with the real
geology. a Categories scheme names the rock types and gives each a color: encode turns labels into the codes 0
to 4 that the simulations take, and shares gives their proportions.
with one gaussian field, the thresholds order the types, so each type touches only its neighbors in the order. a
hierarchical rule truncates several fields in turn: here the first sets quaternary cover apart from the jurassic,
and the second orders the jurassic stages from argovian to portlandian. the cover may then touch any stage, and each
stage touches only the next. both use a guessed latent variogram of 0.8 km.
jura = bt.datasets.jura()
train, grid = jura["prediction"], jura["grid"]
names = ["Argovian", "Kimmeridgian", "Sequanian", "Portlandian", "Quaternary"]
rock_types = bt.Categories(names, colors=["#1f4e79", "#6f9fc9", "#c9d9ea", "#c05a28", "#8c8c8c"])
rock = rock_types.encode(train["Rock"]).astype(int)
true_rock = rock_types.encode(grid["Rock"]).astype(int)
proportions = rock_types.shares(rock)
latent = bt.Variogram([("spherical", 1.0, 0.8)])
ordered = bt.Plurigaussian(latent, proportions=proportions).fit(train, rock)
by_order = ordered.simulate(grid, n=1, seed=3, keep=True).realizations[0]
stages = (1, [names.index(n) for n in ("Argovian", "Sequanian", "Kimmeridgian", "Portlandian")])
rule = (0, [stages, names.index("Quaternary")])
hierarchy = bt.Plurigaussian([latent, latent], proportions=proportions, rule=rule).fit(train, rock)
by_rule = hierarchy.simulate(grid, n=1, seed=3, keep=True).realizations[0]
simulated = (("ordered", by_order), ("rule", by_rule))
print(f"{'':>10}" + "".join(f"{n[:5]:>8}" for n in names))
for label, cats in (("samples", rock), ("true grid", true_rock), *simulated):
print(f"{label:>10}" + "".join(f"{s:8.2f}" for s in rock_types.shares(cats)))
for label, cats in simulated:
print(f"{label}: {np.mean(cats == true_rock):.0%} of nodes match the true rock type")
Out:
Argov Kimme Sequa Portl Quate
samples 0.20 0.33 0.24 0.01 0.21
true grid 0.20 0.34 0.27 0.05 0.13
ordered 0.14 0.37 0.29 0.01 0.19
rule 0.18 0.41 0.21 0.01 0.19
ordered: 37% of nodes match the true rock type
rule: 51% of nodes match the true rock type
cmap, norm = bt.plot.category_colors(rock_types)
xy = grid.coords[:, :2].T
fig, axes = plt.subplots(1, 3, figsize=(12, 5.4), layout="constrained")
panels = [(true_rock, "True rock types"), (by_order, "One field, ordered"), (by_rule, "Hierarchical rule")]
for ax, (cats, title) in zip(axes, panels):
ax.scatter(*xy, c=cats, cmap=cmap, norm=norm, s=7, marker="s", linewidths=0)
ax.set_aspect("equal")
ax.set(title=title, xlabel="X (km)", ylabel="Y (km)")
bt.plot.category_legend(rock_types, fig, loc="outside lower center", ncol=5)
save(fig, "categories")

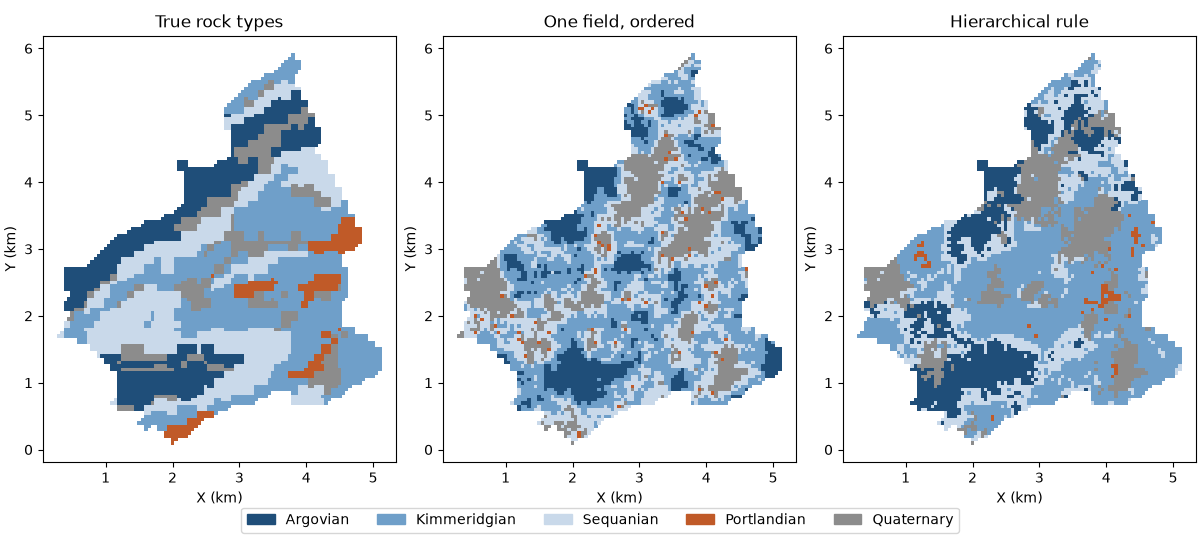

the single field keeps close to the sample proportions but allows contacts only between neighbors in the order, so portlandian appears as specks along each sequanian-quaternary contact. the hierarchical rule puts portlandian next to kimmeridgian and under the cover, as in the true map, and matches 51 % of the nodes against 37 %. neither recovers portlandian's 5 % of the area from 3 of 259 samples.
local proportions¶
given local proportions at the samples at fit and at the nodes at simulate, the rule's thresholds follow them,
so each rock type is likelier where its samples cluster. here the local proportions average the rock types of the
samples with gaussian weights of 300 m and shrink towards the global proportions where samples are sparse. the
probabilities from categorical indicator kriging could serve as well.
onehot = np.eye(5)[rock]
def local_proportions(xy, bandwidth=0.3):
d2 = ((xy[:, None, :2] - train.coords[None, :, :2]) ** 2).sum(-1)
w = np.exp(-0.5 * d2 / bandwidth**2)
return (w @ onehot + proportions) / (w.sum(axis=1, keepdims=True) + 1)
at_nodes = local_proportions(grid.coords)
hierarchy.fit(train.coords, rock, proportions=local_proportions(train.coords))
by_local = hierarchy.simulate(grid, n=1, seed=3, keep=True, proportions=at_nodes).realizations[0]
print(f"rule, local proportions: {np.mean(by_local == true_rock):.0%} of nodes match the true rock type")
Out:
rule, local proportions: 57% of nodes match the true rock type
fig, axes = plt.subplots(1, 2, figsize=(9, 5.2), layout="constrained")
im = axes[0].scatter(*xy, c=at_nodes[:, names.index("Argovian")], s=7, marker="s", linewidths=0)
fig.colorbar(im, ax=axes[0], shrink=0.8, orientation="horizontal", label="local Argovian proportion")
axes[1].scatter(*xy, c=by_local, cmap=cmap, norm=norm, s=7, marker="s", linewidths=0)
for ax, title in zip(axes, ("Local proportion of Argovian", "Hierarchical rule, local proportions")):
ax.set_aspect("equal")
ax.set(title=title, xlabel="X (km)", ylabel="Y (km)")
bt.plot.category_legend(rock_types, fig, loc="outside lower center", ncol=5)
save(fig, "local-proportions")

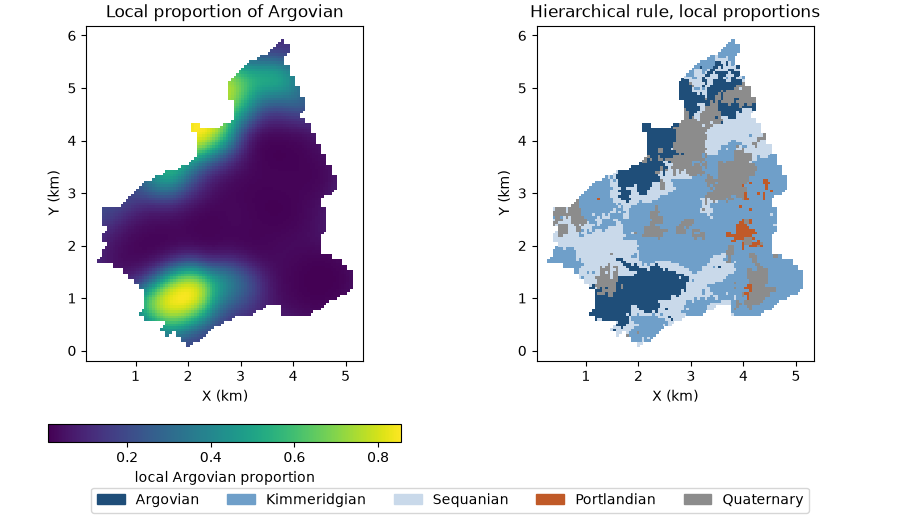

with local proportions, argovian keeps to the north-west and the south, near its samples, and the realization matches the true rock type at 57 % of the nodes, against 51 % with global proportions.
latent variograms¶
the latent variograms so far were guesses. the rule and the latent variograms imply each rock type's indicator
variogram, so fit_variograms rescales the latent ranges until the implied variograms match the experimental ones.
the fit leaves out portlandian, with 3 samples.
experimental = [
bt.experimental_variogram(train.coords, (rock == k).astype(float), 0.1, 1.5)
if names[k] != "Portlandian"
else None
for k in range(5)
]
guessed = bt.Plurigaussian([latent, latent], proportions=proportions, rule=rule)
fitted = bt.Plurigaussian([latent, latent], proportions=proportions, rule=rule).fit_variograms(experimental)
cover, stage = (v.structures[0].range for v in fitted.variograms)
print(f"fitted latent ranges: {cover:.2f} km for the cover field, {stage:.2f} km for the stages field")
fitted.fit(train.coords, rock, proportions=local_proportions(train.coords))
by_fitted = fitted.simulate(grid, n=1, seed=3, keep=True, proportions=at_nodes).realizations[0]
print(
f"rule, local proportions, fitted: {np.mean(by_fitted == true_rock):.0%} of nodes match the true rock type"
)
Out:
fitted latent ranges: 0.49 km for the cover field, 1.87 km for the stages field
rule, local proportions, fitted: 59% of nodes match the true rock type
h = np.linspace(0, 1.5, 61)
fig, axes = plt.subplots(1, 4, figsize=(13, 3.4), layout="constrained", sharey=True)
for ax, k in zip(axes, [k for k in range(5) if experimental[k] is not None]):
ax.plot(experimental[k].lags, experimental[k].gammas, "o", color=GRAY, ms=4, label="experimental")
ax.plot(h, guessed.indicator_variograms(h)[k], "--", color=GRAY, label="guessed ranges")
ax.plot(h, fitted.indicator_variograms(h)[k], color=ACCENT, label="fitted ranges")
ax.set(title=names[k], xlabel="lag (km)")
axes[0].set_ylabel("indicator semivariance")
axes[0].legend(loc="lower right")
save(fig, "latent-variograms")

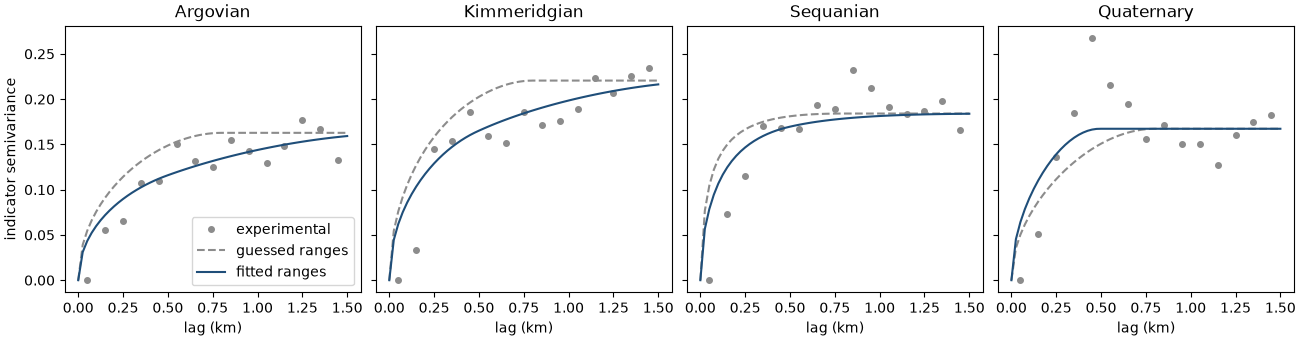

the fitted cover field is short (0.49 km) and the stages field long (1.87 km), so the stages form broad bands that the cover patches over; with 0.8 km on both, the stages varied too fast. the fitted variograms follow the experimental points of each rock type and bring the match to 59 %.
