madogram¶

the madogram is half the mean absolute difference between values a lag apart, M(h) = Σ |z(x) − z(x + h)| / 2N, where the variogram averages squared differences. it is in the units of the data, and a single extreme pair moves it far less, so its shape stays readable on skewed grades whose variogram the outliers make erratic. for gaussian increments M(h) = √(γ(h)/π). dissemination measures the departure from that: √π · M(h) / √γ(h) is 1 for gaussian increments and drops below 1 when a few large differences carry γ, the signature of high grades scattered in isolated samples.

import sys
from pathlib import Path

HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))

import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, HIGHLIGHT, INK, save

the 1 m quartz-vein composites of top cuts, gold in g/t, in vein V1:

data = bt.datasets.vein_gold_grade_control()
intervals = bt.merge_intervals(data["assays"], data["lithology"])
holes = bt.Drillholes(data["collars"], data["surveys"], intervals)
composites = holes.composite(1.0, ["AU_GPT"], domain="LITH", categories=["VEIN"])
vein = composites.filter((composites["LITH"] == "QV") & (composites["VEIN"] == "V1")).drop_null("AU_GPT")
au = vein["AU_GPT"]
print(
    f"{len(au)} composites, mean {au.mean():.2f} g/t, CV {au.std() / au.mean():.2f}, max {au.max():.0f} g/t"
)

Out:

3659 composites, mean 9.43 g/t, CV 2.72, max 521 g/t

three estimators¶

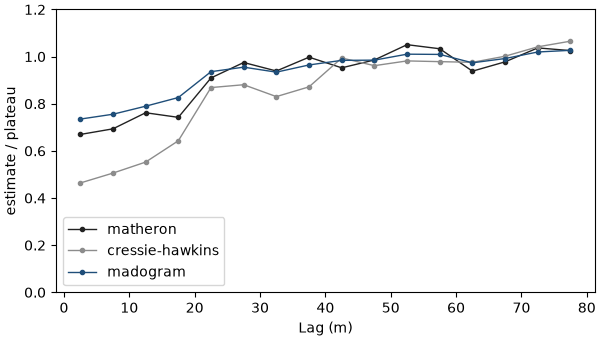

the plot draws the classical variogram, the madogram and the robust "cressie-hawkins" estimator, all omnidirectional with 5 m lags. their units differ, so each is divided by its mean beyond 40 m, its plateau. all three level off near 25 m. beyond, the classical variogram zigzags with the few pairs that hold the highest grades, while the madogram stays flat. the madogram starts higher because it scales like the square root of γ: for gaussian increments, a madogram at 0.73 of its plateau matches a variogram at 0.73² = 0.53 of its sill.

lag, max_lag = 5.0, 80.0
estimators = {"matheron": INK, "cressie-hawkins": GRAY, "madogram": ACCENT}
fig, ax = plt.subplots(figsize=(6, 3.4), layout="constrained")
for e, color in estimators.items():
    curve = bt.experimental_variogram(vein, "AU_GPT", lag, max_lag, estimator=e)
    plateau = curve.gammas[curve.lags > 40].mean()
    ax.plot(curve.lags, curve.gammas / plateau, "o-", color=color, ms=3, lw=1, label=e)
ax.set(xlabel="Lag (m)", ylabel="estimate / plateau", ylim=(0, 1.2))
ax.legend()
save(fig, "estimators")

example 05 06

outliers¶

drop the five highest composites, 0.14 % of the data, and recompute. the variogram loses 40 % at every lag, the madogram 10 %:

keep = au < np.sort(au)[-5]
trimmed = vein.filter(keep)
for e in ("matheron", "madogram"):
    full = bt.experimental_variogram(vein, "AU_GPT", lag, max_lag, estimator=e)
    cut = bt.experimental_variogram(trimmed, "AU_GPT", lag, max_lag, estimator=e)
    change = cut.gammas / full.gammas - 1
    print(
        f"{e:>9}: change without the top five, median {100 * np.median(change):.0f} %, "
        f"range {100 * change.min():.0f} to {100 * change.max():.0f} %"
    )

Out:

 matheron: change without the top five, median -40 %, range -43 to -37 %
 madogram: change without the top five, median -10 %, range -11 to -9 %

dissemination¶

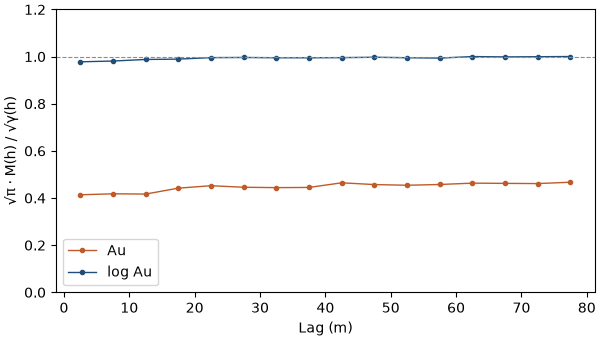

dissemination takes a madogram and a classical variogram computed with the same arguments. on the gold it sits well below 1 at every lag. the logarithm of the grades, closer to gaussian, brings it near 1:

fig, ax = plt.subplots(figsize=(6, 3.4), layout="constrained")
both = vein.with_column("log_au", np.log(au))
for name, column, color in [("Au", "AU_GPT", HIGHLIGHT), ("log Au", "log_au", ACCENT)]:
    madogram = bt.experimental_variogram(both, column, lag, max_lag, estimator="madogram")
    variogram = bt.experimental_variogram(both, column, lag, max_lag)
    ax.plot(madogram.lags, bt.dissemination(madogram, variogram), "o-", color=color, ms=3, lw=1, label=name)
ax.axhline(1.0, color=GRAY, lw=0.8, ls="--")
ax.set(xlabel="Lag (m)", ylabel="√π · M(h) / √γ(h)", ylim=(0, 1.2))
ax.legend()
save(fig, "dissemination")
