A coal seam in a lease¶
How many tonnes of coal lie in a lease, and how sure is that number? 295 boreholes measure the seam thickness: a regional grid of about 700 m, plus infill drilled where the seam is thick. You go from the lease polygon to tonnes by resource class on a 100 m grid.
import sys
from pathlib import Path
HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))
import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import ACCENT, GRAY, HIGHLIGHT, INK, LIGHT, map_axes, save, show
The lease and its grid¶
The dataset brings the boreholes, the lease boundary and a 100 m grid flagged INSIDE the lease. The flag agrees
with testing each cell center against the polygon, so the lease is the masked grid.
data = bt.datasets.coal_seam_thickness()
holes, grid = data["boreholes"], data["grid"]
lease = data["boundary"].parts[0][:, :2]
xy, thickness = holes.coords[:, :2], holes["THICKNESS_M"]
inside = bt.point_in_polygon(grid.coords[:, :2], lease)
print(f"{np.mean(inside == (grid['INSIDE'] == 1)):.1%} of cells agree with INSIDE")
cells = grid.filter(inside)
area = len(cells) * 100 * 100
print(
f"{len(cells)} cells inside, {area / 1e6:.1f} km²; {bt.point_in_polygon(xy, lease).sum()} of {len(xy)} holes"
)

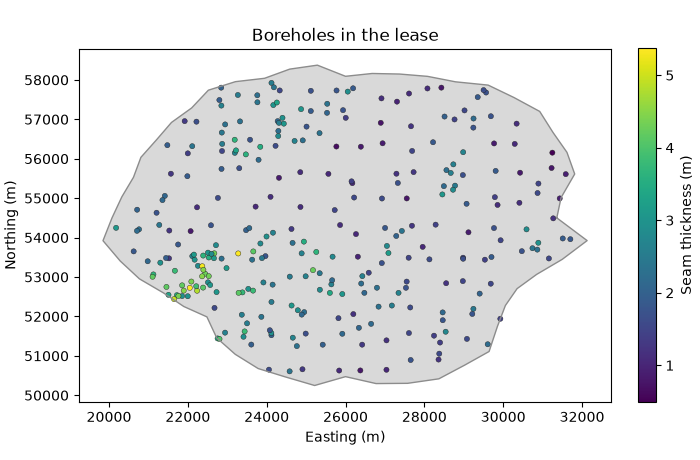

fig, ax = plt.subplots(figsize=(7, 4.6), layout="constrained")
ax.fill(*lease.T, color=LIGHT, lw=0)
ax.plot(*np.vstack([lease, lease[:1]]).T, color=GRAY, lw=1)
points = ax.scatter(*xy.T, c=thickness, s=14, edgecolors=INK, linewidths=0.3)
fig.colorbar(points, ax=ax, shrink=0.8, label="Seam thickness (m)")
map_axes(ax, "Boreholes in the lease")
save(fig, "lease")
Out:
100.0% of cells agree with INSIDE
7162 cells inside, 71.6 km²; 295 of 295 holes
Declustering¶
The infill sits where the seam is thick, so the plain mean overstates it. Cell declustering weights each hole by the inverse of the number of holes in its cell, and keeps the cell size that gives the lowest mean, averaged over 25 grid origins.
declustering = bt.cell_declustering(xy, thickness, sizes=np.arange(100, 3100, 100))
weights = declustering.weights
size = declustering.cell_size
print(f"naive mean {thickness.mean():.2f} m, declustered {declustering.mean:.2f} m with {size:.0f} m cells")
print(f"curve at {size:.0f} m: {declustering.means[declustering.sizes == size][0]:.2f} m")

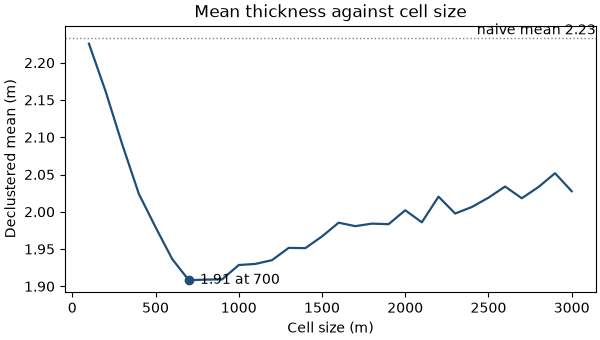

fig, ax = plt.subplots(figsize=(6, 3.4), layout="constrained")
bt.plot.declustering(declustering, naive=thickness.mean(), ax=ax, color=ACCENT, lw=1.6)
ax.set(xlabel="Cell size (m)", ylabel="Declustered mean (m)", title="Mean thickness against cell size")
save(fig, "declustering")
Out:
naive mean 2.23 m, declustered 1.91 m with 700 m cells
curve at 700 m: 1.91 m
The minimum falls at 700 m, the spacing of the regional grid: one regional hole per cell, the infill sharing its cell's weight. The weights are averaged over the same 25 origins, so their mean is the curve's minimum, 1.91 m: the infill inflates the plain mean by about 0.3 m.
An anisotropic variogram¶
Thickness falls to the east. The variogram along the fall keeps climbing past the sill, and the trend causes part of that climb. The residuals from a plane fitted to the thickness level off; you fit one anisotropic model to them in eight directions at once.
trend, residuals = bt.detrend(xy, thickness, degree=1)
print(
f"trend: {trend.coefficients[1] * 1000:+.2f} m per km east, {trend.coefficients[2] * 1000:+.2f} m per km north"
)
azimuths = np.arange(0, 180, 22.5)
lag, max_lag = 350.0, 7000.0
directional = [bt.experimental_variogram(xy, residuals, lag, max_lag, azimuth=a) for a in azimuths]
model = bt.Variogram.fit_directional(directional, [(a, 0) for a in azimuths], "spherical")
azimuth, ratio = model.rotation[0], model.ratios[0]
print(model)

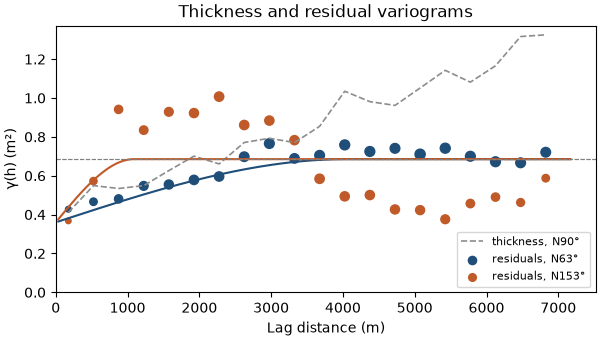

fig, ax = plt.subplots(figsize=(6, 3.4), layout="constrained")
raw = bt.experimental_variogram(xy, thickness, lag, max_lag, azimuth=90)
ax.plot(raw.lags, raw.gammas, "--", color=GRAY, lw=1.2, label="thickness, N90°")
for a, color in ((azimuth, ACCENT), (azimuth + 90, HIGHLIGHT)):
experimental = bt.experimental_variogram(xy, residuals, lag, max_lag, azimuth=a)
bt.plot.variogram(
experimental,
variogram=model,
direction=(a, 0),
ax=ax,
color=color,
label=f"residuals, N{a % 180:.0f}°",
)
ax.set(xlabel="Lag distance (m)", ylabel="γ(h) (m²)", title="Thickness and residual variograms")
ax.set_ylim(bottom=0)
ax.legend(loc="lower right", fontsize=8)
save(fig, "variogram")
Out:
trend: -0.16 m per km east, -0.10 m per km north
Variogram(nugget=0.36028891520809164, structures=[Structure("spherical", sill=0.3250410112495912, range=4038.395920926705)], rotation=(63.29552111528892, 0.0, 0.0), ratios=(0.2695603732169465, 1.0))
Half the residual variance is nugget. The rest is continuous over 4 km towards N63° and a quarter of that across, where the residuals rise above the sill and fall back below it: bands of thick and thin coal elongated N63°.
Ordinary or universal kriging¶
Ordinary kriging assumes a constant local mean; universal kriging fits the eastward plane within each neighborhood. Both use the residual variogram and a search elongated like it.
search = bt.Search(radius=5000, rotation=(azimuth, 0, 0), ratios=(ratio, 1), max_samples=24, min_samples=4)
estimators = {
"ordinary": bt.OrdinaryKriging(model, search),
"universal": bt.UniversalKriging(model, search, degree=1),
}
estimates = {}
for name, estimator in estimators.items():
estimator.fit(xy, thickness)
estimates[name] = estimator.predict(cells)
check = estimator.cross_validate()
print(
f"{name:>9}: mean {estimates[name].mean():.2f} m; leave-one-out RMSE {check.rmse:.3f} m, "
f"slope {check.slope:.2f}"
)
difference = estimates["universal"] - estimates["ordinary"]
print(f"universal - ordinary: {difference.min():+.2f} to {difference.max():+.2f} m")
cells = cells.with_columns({**estimates, "difference": difference})

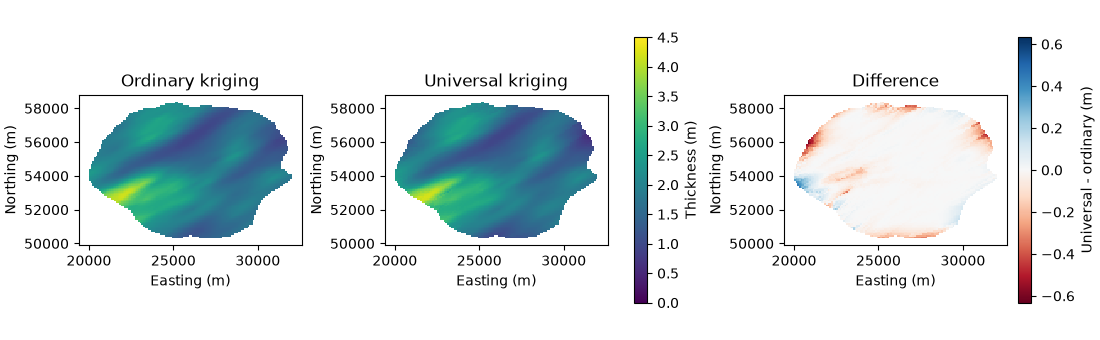

fig, axes = plt.subplots(1, 3, figsize=(11, 3.4), layout="constrained")
for ax, name in zip(axes[:2], estimates, strict=True):
bt.plot.section(cells, name, ax=ax, colorbar=False, vmin=0, vmax=4.5)
map_axes(ax, f"{name.capitalize()} kriging")
fig.colorbar(axes[0].collections[0], ax=axes[:2], shrink=0.8, label="Thickness (m)")
limit = np.abs(difference).max()
bt.plot.section(cells, "difference", ax=axes[2], colorbar=False, cmap="RdBu", vmin=-limit, vmax=limit)
fig.colorbar(axes[2].collections[0], ax=axes[2], shrink=0.8, label="Universal - ordinary (m)")
map_axes(axes[2], "Difference")
save(fig, "kriging")
Out:
ordinary: mean 1.91 m; leave-one-out RMSE 0.603 m, slope 1.02
universal: mean 1.89 m; leave-one-out RMSE 0.609 m, slope 1.00
universal - ordinary: -0.63 to +0.44 m
Inside the drilling the two agree, and cross-validate alike: every neighborhood surrounds its cell. They part at the edges of the lease, where the neighborhood lies on one side of the cell; there ordinary kriging pulls towards the local mean, universal kriging carries the plane on. A swath by easting follows both against the declustered holes.
samples = bt.PointSet(xy, {"thickness": thickness, "weight": weights})
swaths = [
bt.swath(samples, "thickness", 1000.0, axis="x", weights="weight"),
bt.swath(cells, "ordinary", 1000.0, axis="x"),
bt.swath(cells, "universal", 1000.0, axis="x"),
]
labels = ["declustered holes", "ordinary kriging", "universal kriging"]
print(
"easternmost km: " + ", ".join(f"{n} {s['mean'][-1]:.2f} m" for n, s in zip(labels, swaths, strict=True))
)

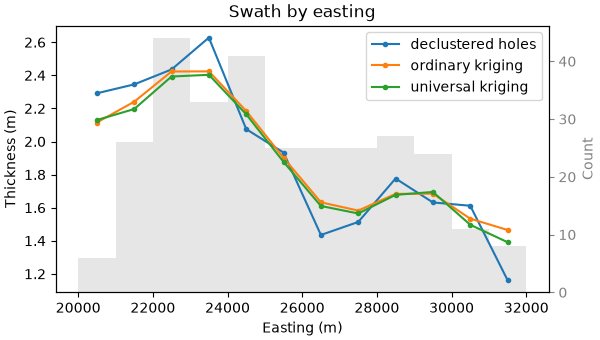

fig, ax = plt.subplots(figsize=(6, 3.4), layout="constrained")
bt.plot.swath(swaths, labels=labels, ax=ax)
ax.set(xlabel="Easting (m)", ylabel="Thickness (m)", title="Swath by easting")
save(fig, "swath")
Out:
easternmost km: declustered holes 1.16 m, ordinary kriging 1.47 m, universal kriging 1.39 m
Both smooth the holes, as kriging does. In the easternmost kilometer, where the holes average 1.16 m, universal kriging gives 1.39 m and ordinary kriging 1.47 m: the plane carries the thinning into the edge cells. Keep universal kriging for the tonnes.
Volume and tonnes¶
Each cell holds its kriged thickness over 100 × 100 m. The dataset has no density, so assume 1.4 t/m³ in situ, typical of bituminous coal.
density = 1.4
for name, estimate in estimates.items():
volume = estimate.sum() * 100 * 100
print(f"{name:>9}: {volume / 1e6:.1f} Mm³, {volume * density / 1e6:.1f} Mt")
cell_tonnes = estimates["universal"] * 100 * 100 * density
kriged = cell_tonnes.sum()
Out:
ordinary: 136.7 Mm³, 191.4 Mt
universal: 135.3 Mm³, 189.4 Mt
How sure is the total?¶
One kriged map gives one number. Sequential Gaussian simulation gives a hundred equally likely maps; the total of each is a possible tonnage. The eastward plane steers it as it steered universal kriging: thickness is normal-scored, with the declustering weights, within ten classes of the plane, and every node is back-transformed within the class of the plane at that node. The variogram of those scores is fitted as before and rescaled to a unit sill.
plane = trend.predict(xy)
pair = np.column_stack([plane, thickness])
scores = bt.StepwiseConditional().fit(pair, weights=weights).transform(pair)[:, 1]
directional = [bt.experimental_variogram(xy, scores, lag, max_lag, azimuth=a) for a in azimuths]
fitted = bt.Variogram.fit_directional(directional, [(a, 0) for a in azimuths], "spherical")
gaussian = fitted.standardized()
print(gaussian)
sgs = bt.SGS(gaussian, search).fit(xy, thickness, weights=weights, trend=plane)
summary = sgs.simulate(cells, n=100, seed=7, trend=trend.predict(cells.coords))
tonnes = summary.realization_mean * area * density
p10, p50, p90 = np.quantile(tonnes, [0.1, 0.5, 0.9])
print(
f"total: P10 {p10 / 1e6:.1f} Mt, P50 {p50 / 1e6:.1f} Mt, P90 {p90 / 1e6:.1f} Mt; kriged {kriged / 1e6:.1f} Mt"
)
print(f"P10-P90 spread ±{(p90 - p10) / 2 / p50:.1%} of P50")

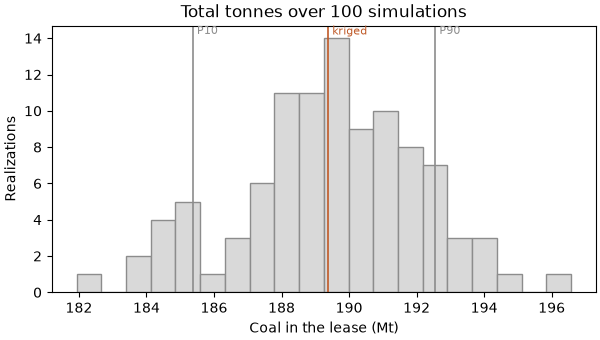

fig, ax = plt.subplots(figsize=(6, 3.4), layout="constrained")
ax.hist(tonnes / 1e6, bins=20, color=LIGHT, edgecolor=GRAY)
for value, label, color in ((p10, "P10", GRAY), (p90, "P90", GRAY), (kriged, "kriged", HIGHLIGHT)):
ax.axvline(value / 1e6, color=color, lw=1.2)
ax.text(value / 1e6, ax.get_ylim()[1], f" {label}", color=color, va="top", fontsize=8)
ax.set(xlabel="Coal in the lease (Mt)", ylabel="Realizations", title="Total tonnes over 100 simulations")
save(fig, "tonnes")
Out:
Variogram(nugget=0.3254728460107622, structures=[Structure("spherical", sill=0.6745271539892377, range=3908.4989240025343)], rotation=(60.7549914680867, 0.0, 0.0), ratios=(0.30591074358169207, 1.0))
total: P10 185.4 Mt, P50 189.4 Mt, P90 192.6 Mt; kriged 189.4 Mt
P10-P90 spread ±1.9% of P50
From P10 to P90 the simulated totals span 185.4 to 192.6 Mt, ±1.9 % around 189.4 Mt, and the kriged 189.4 Mt lies within. With a hole every 700 m or closer, errors in single cells cancel over the 7162 cells of the lease. The assumed density weighs more: 0.1 t/m³ either way moves the total more than the whole P10–P90 range.
Classification by data spacing¶
The equivalent spacing of a cell is the spacing of a square grid of holes that would put as much drilling around it; on a square grid of spacing s it reads about s. Cells at 450 m or less, the infill, are measured; at 700 m or less, the regional grid, indicated; the rest inferred. A 3 × 3 majority filter removes isolated cells.
spacing = bt.data_spacing(cells, xy, None)
rules = [("measured", {"spacing": ("<=", 450)}), ("indicated", {"spacing": ("<=", 700)})]
classes = bt.classify({"spacing": spacing}, rules, default="inferred")
classes = bt.smooth_classes(cells, classes, window=(3, 3, 1))
names = ["measured", "indicated", "inferred"]
for name in names:
kept = classes == name
print(
f"{name:>9}: {kept.mean():5.1%} of the lease, {cell_tonnes[kept].sum() / 1e6:5.1f} Mt, "
f"mean {estimates['universal'][kept].mean():.2f} m"
)
scheme = bt.Categories(names, colors=[ACCENT, "#9ebad6", LIGHT])
cells = cells.with_column("class", scheme.encode(classes))

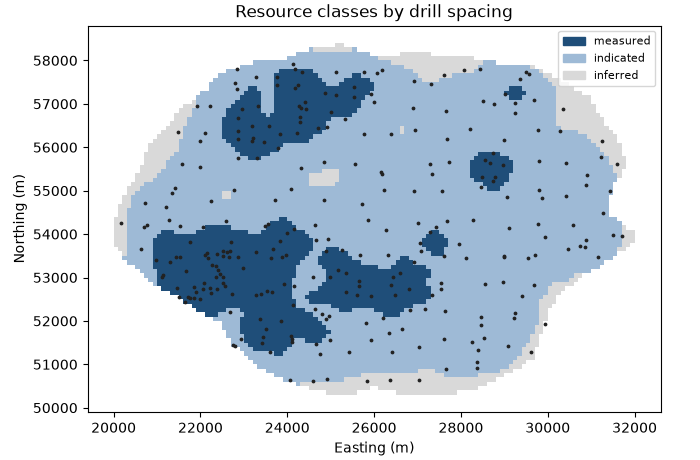

fig, ax = plt.subplots(figsize=(7, 4.6), layout="constrained")
bt.plot.section(cells, "class", ax=ax, colorbar=False, scheme=scheme)
ax.scatter(*xy.T, s=3, color=INK)
bt.plot.category_legend(scheme, ax, loc="upper right", fontsize=8)
map_axes(ax, "Resource classes by drill spacing")
save(fig, "classes")
Out:
measured: 21.9% of the lease, 57.4 Mt, mean 2.62 m
indicated: 68.9% of the lease, 118.9 Mt, mean 1.72 m
inferred: 9.2% of the lease, 13.0 Mt, mean 1.41 m
Measured cells, a fifth of the lease, sit on the infill where the seam is thickest, 2.62 m on average, and hold 57.4 Mt. Indicated cells cover the regional grid, 118.9 Mt; inferred ones, 13.0 Mt, lie at the edges of the lease beyond the last holes, and where the regional grid has gaps. Spacing ignores the variogram; classification classifies from the kriging itself.
Scene.add encodes a text values column itself, so the 3D layer takes the class labels directly rather than
the already-encoded "class" column; its scheme=scheme keeps the same order and colors as the figure above.

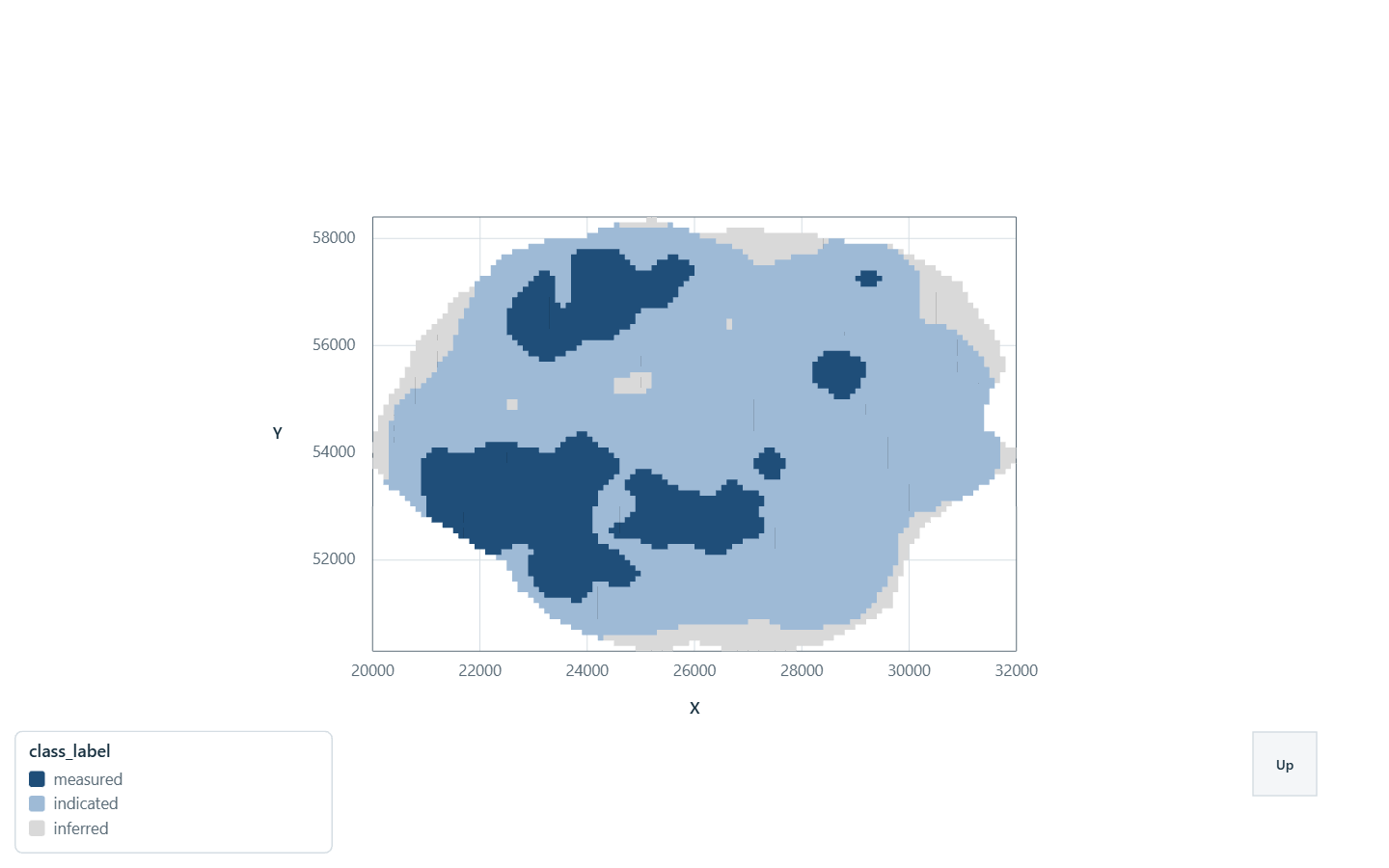

cells = cells.with_column("class_label", classes)
scene = bt.plot3d.Scene()
scene.add(cells, "class_label", name="classes", scheme=scheme)
scene.view(azimuth=0, dip=90)
show(scene, "classes_3d", "Resource classes by drill spacing, in 3D")
