image quilting¶

image quilting copies whole patches of the training image instead of one cell at a time. patches overlap along a raster path. quilting draws each patch among the n_best positions of the image that best match what the grid already holds under it, and joins it to its neighbors along the seam where the two differ least. it is fast, and a patch keeps the image's patterns intact up to its own size.

import sys
from pathlib import Path

HERE = Path(__file__).parent if "__file__" in globals() else Path.cwd()
sys.path.insert(0, str(HERE.parents[1]))

import boitata as bt
import matplotlib.pyplot as plt
import numpy as np
from common import HIGHLIGHT, INK, save
from matplotlib.colors import ListedColormap

ti = bt.datasets.strebelle()
nx, ny = ti.count[:2]
image = ti.grid("facies")[0]
grid = bt.BlockModel((0, 0), (1, 1), (nx, ny))


def runs(img, axis):
    """Mean length of the runs of code 1 along `axis` of a (y, x) image."""
    lines = img if axis == 1 else img.T
    lengths = [len(r) for line in lines for r in "".join(map(str, line.astype(int))).split("0") if r]
    return np.mean(lengths)


print(
    f"training image: sand {image.mean():.1%}, runs {runs(image, 0):.1f} cells along Y, {runs(image, 1):.1f} across"
)

Out:

training image: sand 27.7%, runs 20.4 cells along Y, 8.5 across

patch_size sets how much of the image travels in one piece, and the overlap is a sixth of it by default. twenty realizations for each of three sizes:

realizations = {}
for size in (10, 30, 60):
    summary = bt.ImageQuilting(ti, "facies", patch_size=size).simulate(grid, n=20, seed=7, keep=True)
    reals = summary.realizations.reshape(-1, ny, nx)
    realizations[size] = reals[0]
    along = np.mean([runs(r, 0) for r in reals])
    print(
        f"patch_size={size}: sand {reals.mean():.1%}, runs {along:.1f} along Y, {np.mean([runs(r, 1) for r in reals]):.1f} across"
    )

Out:

patch_size=10: sand 26.9%, runs 19.3 along Y, 8.1 across
patch_size=30: sand 28.7%, runs 20.2 along Y, 8.3 across
patch_size=60: sand 29.7%, runs 20.6 along Y, 8.2 across

small patches cut the channels at their seams. at 30 cells the runs along Y match the image's; at 60 the realizations are the image cut and reassembled, with fewer seams and less variety between them.

codes = ListedColormap(["white", "black"])


def frame(ax, title):
    ax.set(title=title, xticks=[], yticks=[])
    for side in ax.spines.values():
        side.set(visible=True, color=INK, lw=0.6)


fig, axes = plt.subplots(1, 4, figsize=(15, 3.9), layout="constrained")
panels = [(image, "Training image")] + [(r, f"patch_size={k}") for k, r in realizations.items()]
for ax, (img, title) in zip(axes, panels):
    ax.imshow(img, origin="lower", cmap=codes, vmin=0, vmax=1, interpolation="nearest")
    frame(ax, title)
save(fig, "patches")

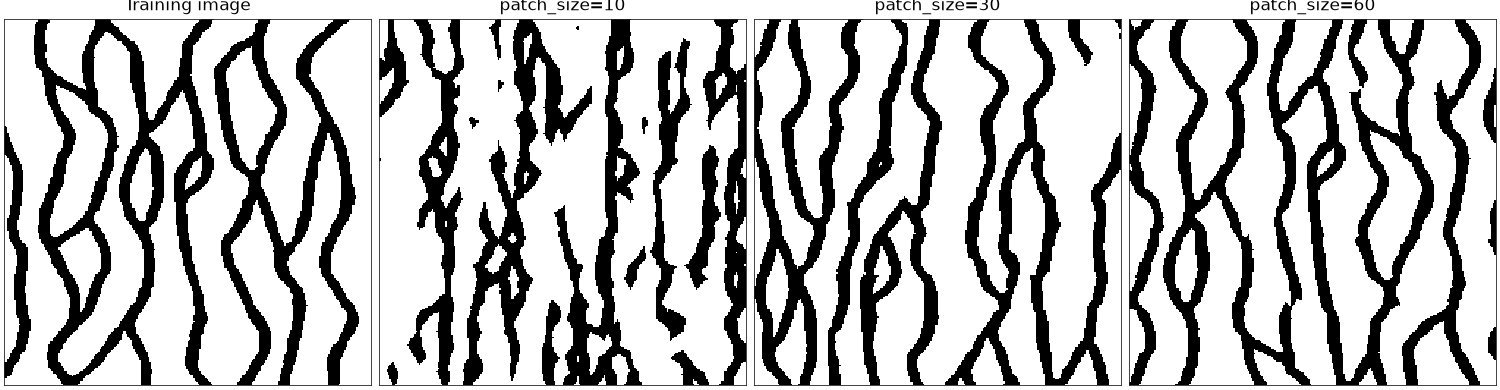

Training image, patch_size=10, patch_size=30, patch_size=60

when quilting chooses a patch, each hard datum weighs data_weight times a mismatched overlap cell, and no patch pastes over it, so hard data hold in all realizations. soft probabilities add soft_weight times the mean of 1 - P(c) over the patch, c the code the patch puts in each cell. a patch can come from anywhere in the image, so the truth here is the image mirrored east to west: the same patterns, none of them in the same place. 100 of its cells serve as hard data, as in conditioning SNESIM, and smoothing turns it into soft data as in soft data in SNESIM:

truth = image[:, ::-1]
rows = np.random.default_rng(0).choice(nx * ny, size=100, replace=False)
wells = grid.coords[rows]
facies = truth.ravel()[rows].astype(int)
hard = bt.ImageQuilting(ti, "facies", patch_size=30).fit(wells, facies)
with_data = hard.simulate(grid, n=20, seed=3, keep=True)
print(f"hard data reproduced: {(with_data.realizations[:, rows] == facies).all()}")

kernel = np.ones(11) / 11
p_soft = np.apply_along_axis(np.convolve, 1, truth, kernel, "same")
p_soft = np.clip(np.apply_along_axis(np.convolve, 0, p_soft, kernel, "same"), 0.02, 0.98).ravel()
with_soft = bt.ImageQuilting(ti, "facies", patch_size=30, soft_weight=5.0).simulate(
    grid, n=20, seed=3, keep=[0], soft=np.column_stack([1 - p_soft, p_soft])
)
for name, summary in (("hard data", with_data), ("soft data", with_soft)):
    hits = (summary.realizations[0] == truth.ravel()).mean()
    print(f"{name}: realization 1 matches the truth in {hits:.0%} of cells")

Out:

hard data reproduced: True
hard data: realization 1 matches the truth in 62% of cells
soft data: realization 1 matches the truth in 92% of cells

a hundred scattered cells barely move a patch cut to fit its overlap, so they change little beyond their own cells. the soft map covers each cell, and the patches follow it. a map this sharp with soft_weight=5 leaves the realizations little room to differ: P(sand) is near 0 or 1, gray only at a few seams. lower the weight when the soft data are less certain than the patterns.

fig, axes = plt.subplots(1, 4, figsize=(15, 4), layout="constrained")
panels = (
    (with_data.realizations[0], "Realization 1, hard data", codes),
    (with_data.probabilities[:, 1], "P(sand), hard data", "gray_r"),
    (with_soft.realizations[0], "Realization 1, soft data", codes),
    (with_soft.probabilities[:, 1], "P(sand), soft data", "gray_r"),
)
for ax, (values, title, cmap) in zip(axes, panels):
    im = ax.imshow(grid.grid(values)[0], origin="lower", cmap=cmap, vmin=0, vmax=1, interpolation="nearest")
    frame(ax, title)
for ax in axes[:2]:
    ax.scatter(
        *wells[:, :2].T, s=10, c=np.where(facies == 1, "black", "white"), edgecolors=HIGHLIGHT, linewidths=0.9
    )
fig.colorbar(im, ax=axes[3], shrink=0.8, label="probability")
save(fig, "conditioning")

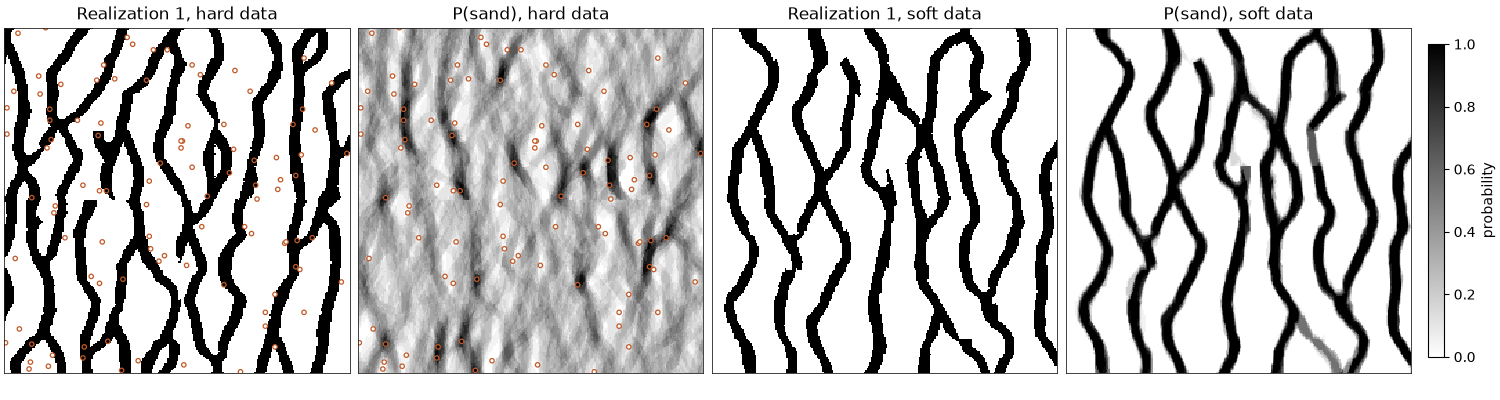

Realization 1, hard data, P(sand), hard data, Realization 1, soft data, P(sand), soft data
